19" Network Cabinet Standard 42U, RAL7035

Bredde/Dybde: 600/600 mm Vekt: 88 Kg



Ta kontakt for skap med andre dimensjoner.



Felles spesifikasjoner for alle størrelser

•19" Network cabinet according to DIN 41494
•Steel sheet housing with welded frame, completely pre-assembled, self-ventilated, not dismountable
•Inside front and rear 4 x 19" profiles (2 front, 2 rear-sided), galvanised, depth-adjustable in 25 mm raster
•Numbering of rack units at the 19" profiles
•Front door with window of certified safety glass (thickness 5 mm)
•Front door with 1-point turning handle and profile half-cylinder acc. to DIN 18252 / EN1303
•Profile half-cylinder exchangeable by customer (30/10 mm)
•Rear door steel, 1-part, full cabinet height with 2 x latch locking (locks equal to the door lock)
•Door mounting possible swiveling to the left and right side (standard: right)
•Door opening angle front and rear 180° due to exterior hinges

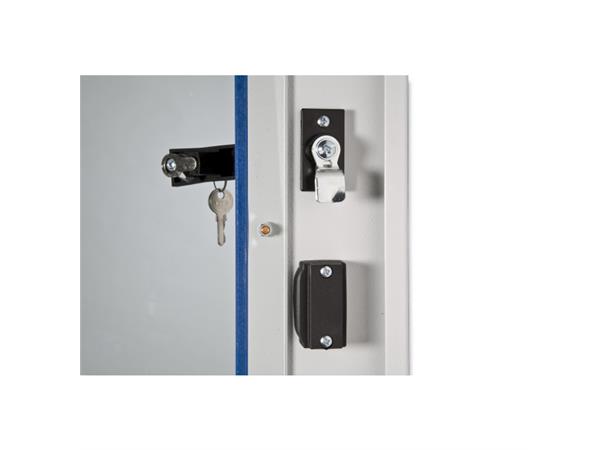

•Detachable side walls with 2 x latch locking (keys equal to the door lock)
•Cabinets stackable side-by-side and rear-by-rear with and without removal of the side walls, bolt-set (Art.-No. 691644) suitable with removed walls, otherwise screwable via screws and nuts M6

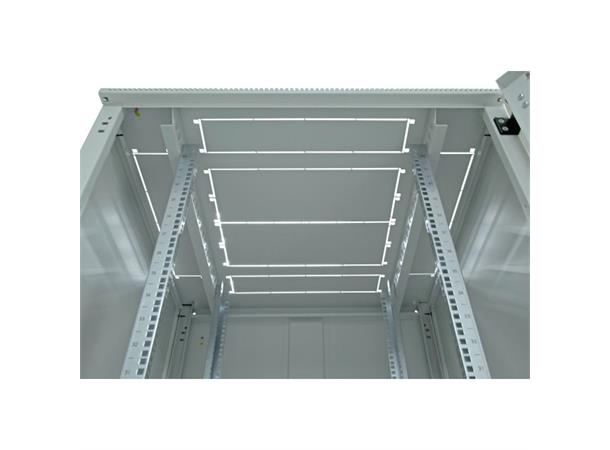

•Roof and bottom with 4 pre-punched openings for cable entry (front/rear/left/right) and for accommodation of fan/filter units (for 600 mm cabinet width cable entry only front/rear)

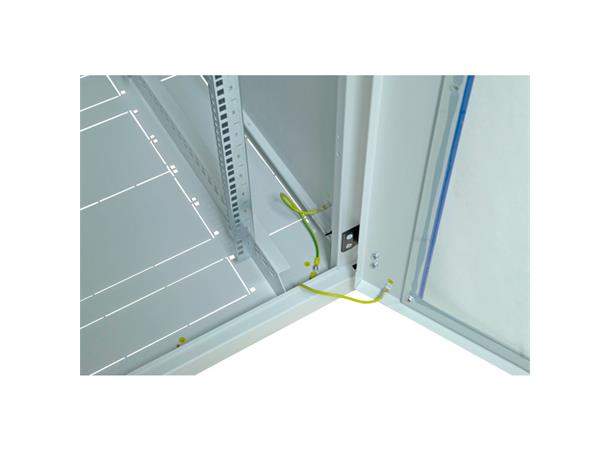

•Internal earthing of all cabinet sections
•Max. load 600 kg, increase to 1000 kg possible with traverse-set Art.-No. 691679N.x
•Paint finish RAL7035, light grey
•Protection degree IP20
•Included accessories: 1 x brush terminal, 1 x set of captive nuts (PU 20 pcs.), 4 x levelling feet M10, 2 x key
•Delivery in transport packaging on disposable pallet
