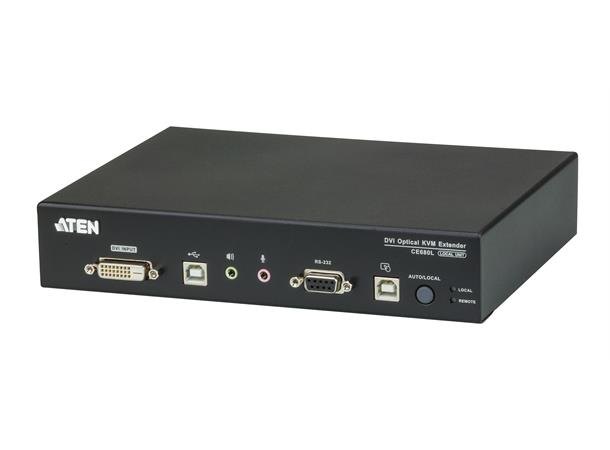

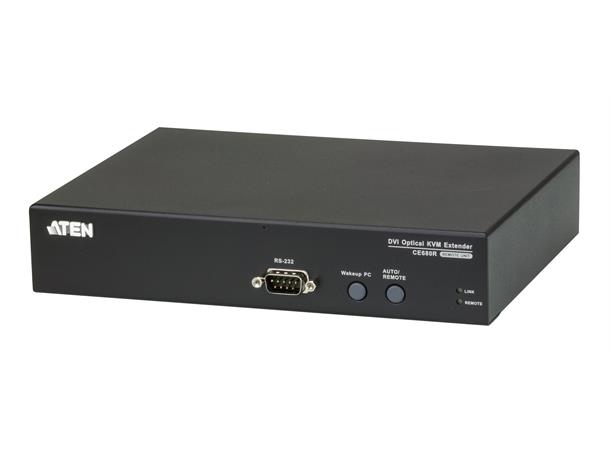

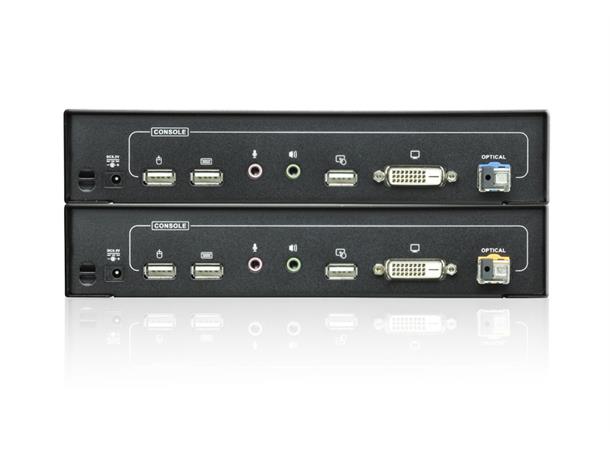

Aten CE680

DVI Optical Fiber KVM Extender (600m)





The CE680 is a DVI Optical KVM Extender that overcomes length restrictions of standard DVI cables by using fiber optics to send high definition audio, video and control signals over longer distances. The CE680 can transmit KVM DVI signals very long distances - up to 600 m away from the source. The extender takes audio/video streams from the local source and serializes the data to pass it over a single 3.125 Gbps optical link, for resolutions up to 1920 x 1200 @ 60Hz, 24-bits, with picture perfect quality.



Allows access to a computer or KVM installation from a local / remote console
Supports DVI-D interface and allows transmission of DVI single-link signals
Superior video quality of up to 1920 x 1200 @ 60 Hz (24-bits) - get an excellent, crisp image on your screen over long distance transmissions up to 600 m*
Touchscreen support - connect a generic touchscreen, including devices up to 10-point multi-touch, to accommodate highly interactive applications (no extra drivers needed)
Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
Uses one fiber optic cable to connect the local and remote units
HDCP compatible
RS-232 serial port - connect to a serial terminal, or serial devices such as barcode scanners (Baud Rate 115200 bps)
PC Wakeup support - use a pushbutton on a Remote Unit to wake a PC at the local site via RS-232
Audio Enabled - supports stereo speakers and microphone
Rack mountable
