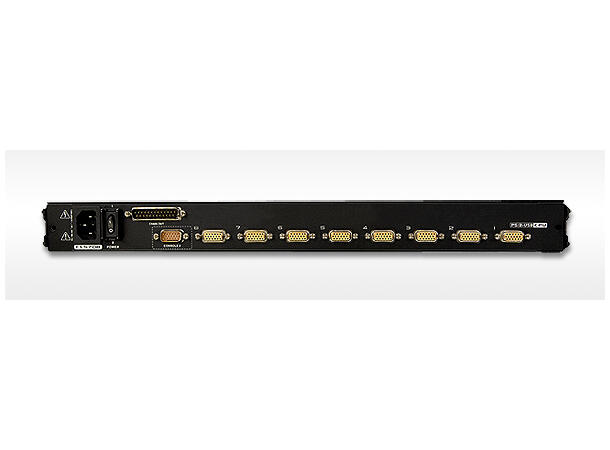

Aten 8-Port Slideaway™ LCD KVMP Switch
2 kabler inkludert
The CL5708 Slideaway™ LCD KVMP Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.
The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 19" LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
Features
Integrated KVM console with 19" LCD monitor in a Slideaway™ housing
Space saving technology - up to two consoles (one bus) control up to 8 computers
Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
LCD module USB port allows each computer to access USB peripherals*
LCD module rotates up to 115 degrees for a more comfortable viewing angle
Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
Supports multimedia USB keyboards for PC, Mac and Sun
Auto PS/2 and USB interface detection
Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
Supports external USB mouse
Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
Port names automatically reconfigured when station sequence is changed
Two level password security - only authorized users can view and control computers
Supports one administrator and four user accounts with separate profiles
Auto Scan mode enables continuous monitoring of user-selected computers
Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
Hot pluggable - add or remove computers without having to power down the switch
Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
* The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.
Package Content
1x CL5708 KVMP Switch with standard Rack Mount Kit
2x Custom KVM Cable Sets
1x 5-in-1 USB / PS/2 Console Cable
1x Firmware Upgrade Cable
1x Power Cord (AC Power Models)
1x Grounding Wire
1x User Manual
1x Quick Start Guide
