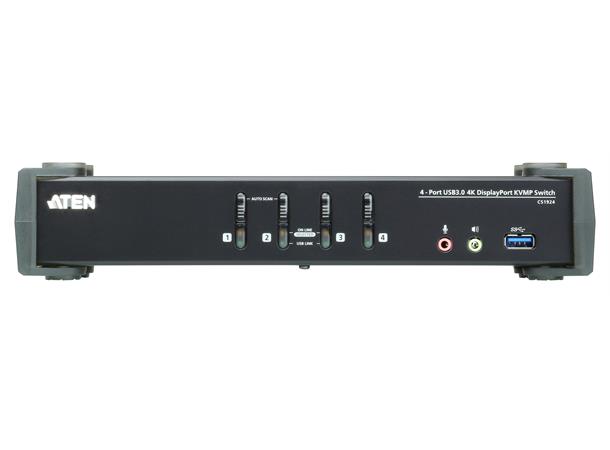

As a KVM switch, the CS1924 allows users to access four DisplayPort computers from a single USB keyboard, USB mouse and monitor console. Doing so with ease, the CS1924 provides three convenient switching methods – using front panel pushbuttons, mouse, or hotkeys for flexible access to any computer connected to the installation.
The unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a print server, modem splitter, etc.
With its rich feature set, the CS1924 is designed to surpass all requirements in graphic design, animation, and video-editing applications. Such as CAD/CAM (computer aided design/manufacturing). The CS1924 allows you to share the audio from each of the connected computers. HD audio transmitted by DisplayPort would offer you a different experience.
Package Contents
- 1x CS1924 4-Port USB 3.0 4K DisplayPort KVMP™ Switch
- 4x LIN5-20K1-K13G DisplayPort Cables
- 4x LIN6-11C1-E12G USB 3.0 Cables
- 4x LIN5-0205-21CG Audio Cable
- 4x LIN5-0205-21DG Audio Cable
- 1x 0AD8-8005-40MG Power Adapter
- 1x LIN2-418K-E12G Power Cord
- 1x User Instructions
4-port DisplayPort KVMP™ Switch with USB 3.1 Gen1 hub and 2.1 surround sound audioOne USB console controls 4 computers and 2 USB peripheralsComputer selection via front panel pushbuttons, hotkeys and mouse*Independent switching of KVM, USB, and Audio focusSuperior video quality – 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer ratesDisplayPort 1.2 compliant, HDCP compliantSupports HD audio through DisplayPort**Full bass response for high-quality 2.1 channel surround sound systemsPower On Detection – if a computer is powered off, the CS1924 automatically switches to the next powered-on computerMulti-Stream Transport (MST) allows multiple monitors through a single DisplayPort connector***Dual-Mode DisplayPort technology (DP++) supports HDMI and DVI signals via an externally powered DisplayPort-to-HDMI/DVI DP++ adapter ****Hot pluggable – add or remove computers without powering down the switchKeyboard emulation/bypass feature supports most gaming keyboardMouse emulation/bypass feature supports most mouse drivers and multifunction miceMulti-platform support – Windows, Mac and LinuxMultilingual keyboard mapping supports English, Japanese, French and German keyboardsMac keyboard support and emulation*****Auto Scan Mode for monitoring all computersFirmware upgradeable
Note:
1. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel.
2. HD audio through DisplayPort cannot be switched independently.
3. MST requires two monitors capable of DisplayPort 1.2 daisy-chaining, or use of a powered DisplayPort MST Hub. The PC source must be DisplayPort 1.2 compliant. A DisplayPort v1.1a display can be the last display in a DisplayPort v1.2 chain.
4. Dual-Mode DisplayPort technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility.
5. PC keyboard combinations emulate Mac keyboards. Mac keyboards only work with their own operating system.
