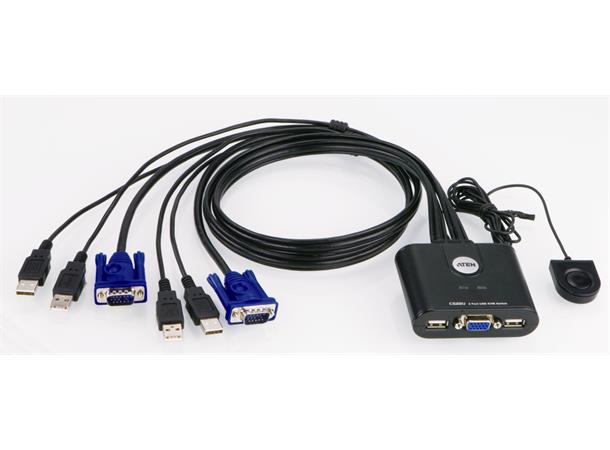

Aten 2-Port USB Cable KVM Switch
CS22U XGA USB
The CS22U is a 2-port USB Cable KVM Switch that provides a simple and quick method of selecting computers - a built-in remote selection switch. This allows the CS22U unit to be hidden from sight, while the remote selection switch can be placed conveniently on the desktop.
Features
- One USB console controls two USB computers
- Supports multifunction mice
- Multiplatform support - Windows, Mac, Linux and Sun
- Superior video quality - up to 2048 x 1536; DDC2B
- Non-powered
Package Content
- 1x CS22U 2-Port USB Cable KVM Switch with 1.8m Remote Selection Switch
- 1x User Guide
Specification
- Computer Connections 2
- Port Selection Remote Selection Switch
- Connectors Console Ports Keyboard 1 x USB Type A Female (Black)
- Video 1 x HDB-15 Female (Blue)
- Mouse 1 x USB Type A Female (Black)
- KVM Ports Keyboard/Mouse 2 x USB Type A Male (Black)
- Video 2 x HDB-15 Male (Blue)
- LEDs Selected 2
- Cable Length Computers 0.9 m
- Remote Port Selector 1.8 m
- Video 2048 x 1536, DDC2B
- Environment Operating Temp. 0-50°C
- Storage Temp. -20-60°C
- Humidity 0-80% RH, Non-condensing
- Physical Properties Housing Plastic
- Weight 0.31 kg
- Dimensions ( L x W x H ) 8.24 x 7.71 x 2.46 cm
