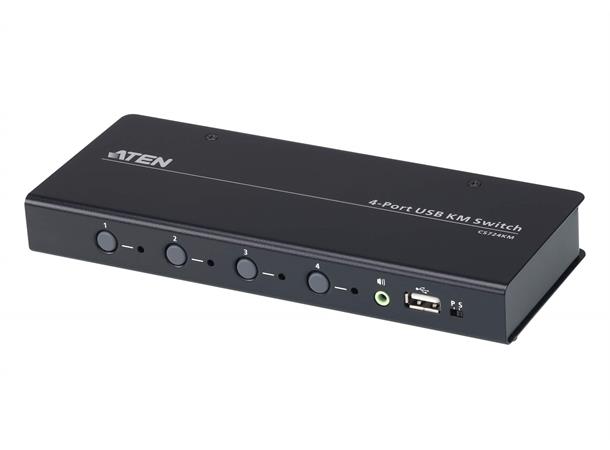

Aten CS724KM-AT
4-Port KM Switch
The CS724KM features various innovative port selection methods. Users can switch between the connected computers via front panel pushbutton, keyboard hotkey, mouse cursor, mouse wheel, and RS-232 commands. The mouse cursor method adopts ATEN’s exclusive Boundless Switching technology, which enables users to switch between multiple computers in multi-monitor extended desktops by simply moving the mouse cursor across any of the display borders in any direction to instantly select the target computer and take full control.
Features:
- Single USB keyboard and mouse control up to 4 computers
- Daisy-chain two CS724KM units to control up to 8 computers with a single keyboard and mouse

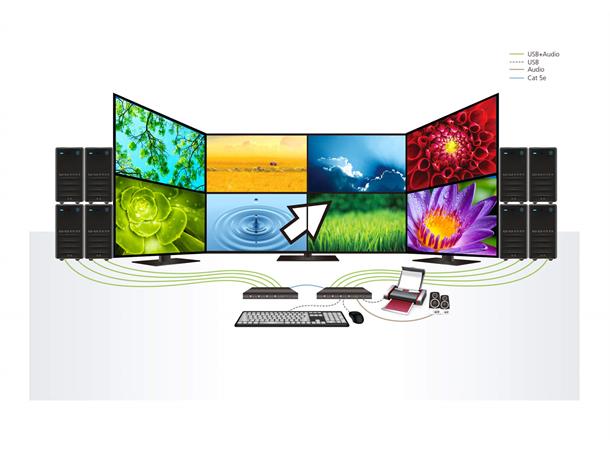

- Boundless Switching – simply move the mouse cursor across the display border and onto the corresponding display of the target computer to switch the keyboard/mouse operations from one computer to the next.
- Boundless Switching Configuration Utility* – an intuitive GUI tool that enables users to customize monitor layouts
- Port selection via front panel pushbutton, keyboard hotkey, mouse cursor, mouse wheel**, and RS-232 commands
- Independently switch keyboard/ mouse, USB peripheral, and audio focus via hotkeys
- Supports RS-232 serial commands
- Supports Windows operating systems
- No software required
- Bus-powered – no external power adapter required***
Note:
* The utility is installed on a separate computer.
** Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel.
*** The USB bus-powered design allows the switch to get power from the connected computers. It requires connection to at least two computers to get sufficient power supply.
Package Contents
- 1x 4-port USB Boundless KM Switch
- 4x LIN6-04U1-V1BG USB Cables (USB 2.0-A to USB 2.0-B; 1.8m/6ft)
- 4x LIN5-0205-21CG Audio Cables (1.8m/6ft)
- 1x User Instructions
