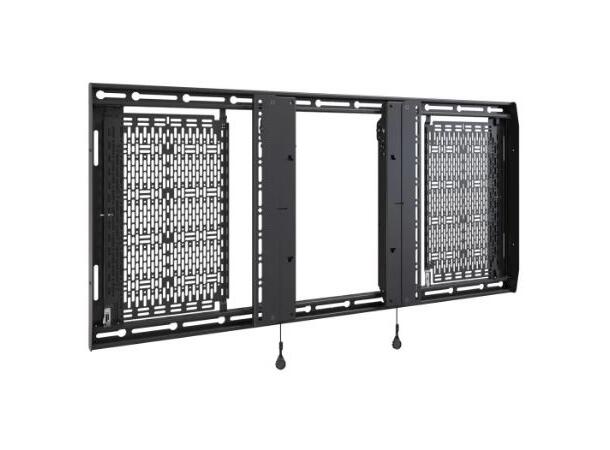

Chief Tempo™ Flat Panel Wall Mount System
This all-in-one configurable wall mounting system is designed to improve efficiency by streamlining installation workflow.
AV professionals can increase productivity and add money to the bottom line with this new system, especially for mass rollouts.
Install on any wall and neatly store AV devices with simple, unparalleled service access. Install 2-6 small devices behind
the display on integrated Lever Lock™ storage panels. Tempo Wall Mount System is thoughtfully designed with
feedback from installers for faster deployments.
Accelerate AV Installations
- One part number, one box, one order!
- Ship to site pre-loaded with small devices and cabling.
Save Money
- Reduce onsite installation personnel and time.
- Minimize last-minute shipping costs of missing parts.
Feature Flexibility
- Wall plate and extending interface design facilitates centering display in the right position.
- 10° of adjustable display tilt in 2.5° increments.
Streamlined for Success
- Total installation depth facilitates ADA compliance*
- Up to 1" (25 mm) post-install leveling adjustment.
*When display depth is less than 2” (51 mm)

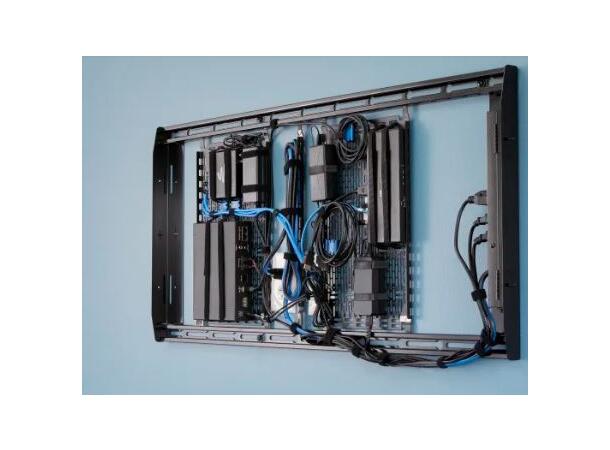

Integrated Storage
- Ships with two 15”x10” Lever Lock™ plates with space to add more.
- Storage plates can be moved along the mounting rail for best placement of components.
Simplify Service

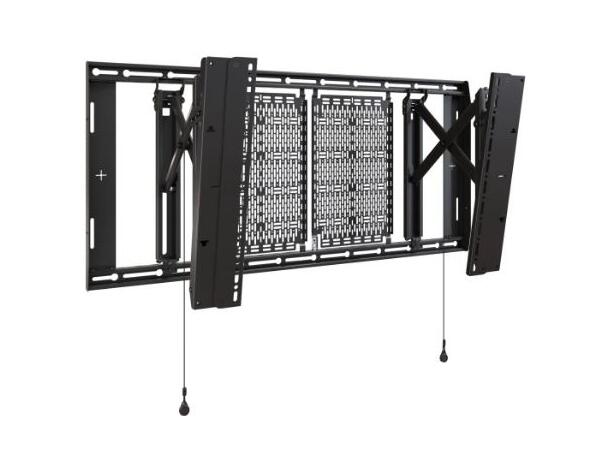

- 12.6" (320 mm) of service access.
- Open wall plate for easy positioning of power and data sources and in-wall storage.
Specifications
Certifications: UL Listed
Color: Black
Lateral Shift: Yes
Minimum Depth: 1.96" (50 mm)
Mounting Pattern Compatibility (Universal Versions): Up to 970x450
Orientation: Landscape
Overall Dimensions (H x W x D): 42.03” x 19.75” x 1.96” (1068 x 502 x 50 mm)
Shipping Weight: 11 kg
Solution Type: Universal
Wall Stud Compatibility (inches): 16-24
Weight Capacity: 200 lbs (90,7kg)
