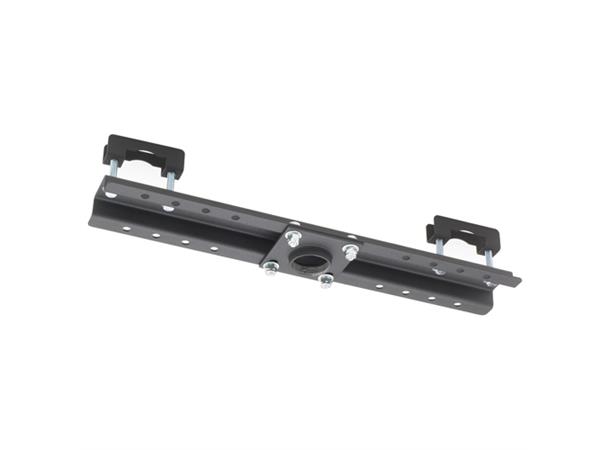

Chief CMA366
Architectural Spanning Adapter
Spans truss systems for easy overhead installation of equipment in buildings and exhibit booths.
Features
•Spans truss systems and provides lateral shift capability
•Compatible with 1.5" NPT extension columns
•Allows cable routing through the column
•Span Distance: 5-18" (127-457 mm)
•Clamp Range: up to 2" (51 mm) OD or 1.9" (48 mm) square tubing
Specifications
Certifications: TÜV Certified, UL Listed
Color: Black
Overall Dimensions (H x W x D): 1.8" x 4.0" x 21.8" (45 x 102 x 552 mm)
Shipping Weight: 3 kg
Weight Capacity: 250 lbs (113.4 kg)
