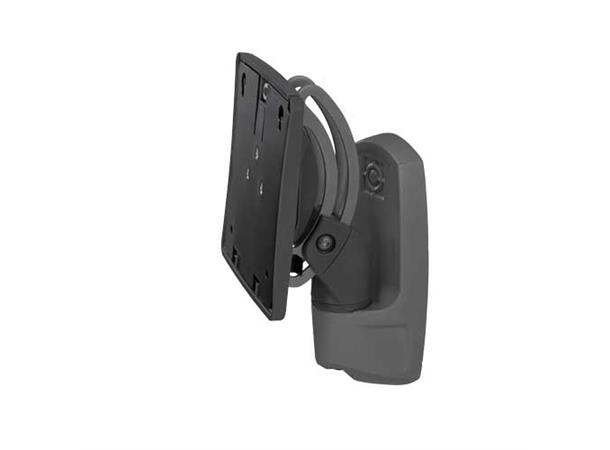

Chief K0W100B

Kontour K0 Wall Mount with Extreme Tilt Pitch/Pivot





The new Kontour™ K0 Wall & Pole mounts, with Centris™ Extreme Tilt Pitch/Pivot, are great solutions for mounting a single monitor with exceptional range of motion. With an extremely low profile and sleak design, applications include public spaces, back-kitchen video monitoring, security monitors, or in the office.



Features

•Sleek, solidly-constructed mounts in subtle semi-gloss silver & black finishes
•Enhanced fingertip positioning of monitor(s) for optimal viewing comfort
•Enhanced patented Centris™ Extreme Tilt provides +75°, -10° of effortless tilt
•Adjustable tension settings on rotation & tilt allow free-moving or fully locked display positioning
•Teardrop hole pattern makes mounting the screen quick and easy
•Wall Mounts easily install to any wall using the fast-installing Wall Plate
•Pole Mounts easily clamp to poles ranging from 1.50" - 1.90" diameter, including Chief's KTA pole accessories
•OFB office furniture interface brackets available for most office systems
•VESA® 75 x 75 mm and 100 x 100 mm compatible
•FSB interface brackets available for non-VESA compliant monitors
•40 lb (18.1 kg) weight capacity for use with larger monitors, touch-panels, and all-in-one computers



Specifications



Color: Black

Minimum Depth: 3.20" (81 mm)

Mounting Pattern Compatibility (Universal Versions): 75 x 75mm ,100 x 100mm VESA

Number of Monitors: 1

Orientation: Landscape, Portrait

Post-Installation Leveling (Roll): Yes

Shipping Weight: 2 kg

Tilt: +75°, -10°

Typical Screen Sizes: 10 - 30" (254 - 762 mm) diagonals

Wall Stud Compatibility (inches): Single Stud

Weight Capacity: Up to 40 lbs. (18.1 kg)
