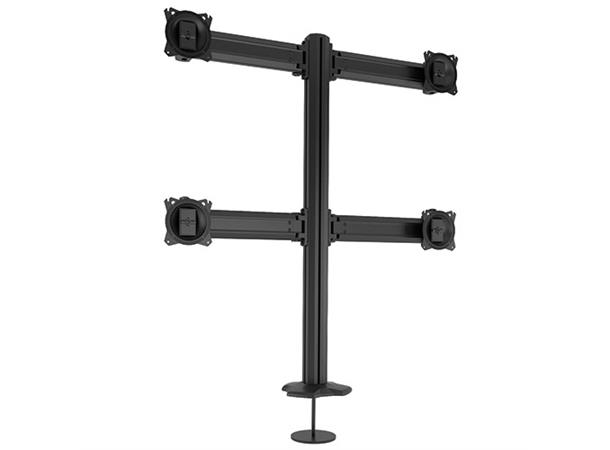

Chief K3G220B

Grommet Mounted 2x2 Array



Flexibility meets form and function with the K3 Series of elegantly designed, solid array mounts from Chief.

Provides an aesthetic, stable solution for call centers, security desks, IT, health care, control rooms and other multiple monitor settings.



!Boltfeste "grommet" krever at man borer hull i bordflaten.

Klemmefeste er også tilgjengelig, se tilbehør.



Features
•Portable Centris heads can easily be moved along the array arm for lateral adjustment
•Accommodates monitors up to 27"
•Centris technology in heads on the rails provides smooth, fingertip 12 degree tilt in all directions
•Independent height adjustment of each arm
•Array arms can be adjusted from flat up to a 15 degree angle toward the user
•Simple installation
•Teardrop hole pattern makes mounting monitors quick and easy
•VESA 75 x 75 mm and 100 x 100 mm compatible
•Tool-free, integrated cable management


Specifications

Color: Black

Desktop Thickness Range: 13 - 127mm

Grommet Hole Size Range: 0.38" - 3.5" (10 - 89mm)

Mounting Pattern Compatibility (Universal Versions): 75 x 75mm, 100 x 100mm

Notes: Weight capacity is per monitor

Orientation: Landscape, Portrait

Overall Dimensions (H x W x D): 985.8 x 864.1 x 178.5mm

Post-Installation Leveling (Roll): Yes

Solution Type: Universal

Tilt: 12 degrees

Typical Screen Sizes: 10 - 24"

Weight Capacity: 15 lb (6.8 kg)
