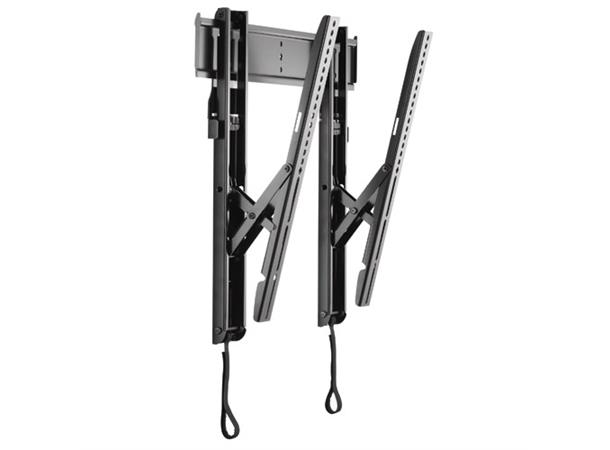

Chief LTTU

Large THINSTALL™ Tilt Wall Mount

One of the worlds thinnest universal tilt wall mount.
•Low-profile design compliments the new ultra-thin flat panel TVs
•Only compatible with new ultra-thin TVs 2" (51 mm) deep or less

Features
•Designed specifically for and only compatible with new ultra-thin TVs 2" (51 mm) deep or less
•Ultra low-profile design compliments ultra-thin flat panel TVs
•Provides 12° of smooth, fingertip tilt
•GlideLock provides tool-less latching for faster installation
•Consists of one-piece steel bracket with two tilting interfaces
•Each interface includes a sliding flag for increased security
•Features a cable stand and bottom pullout for cable access
•Provides lateral shift for increased flexibility
•Can be installed in landscape mode only

Specifications

Certifications: UL Listed

Color: Black

Lateral Shift: Depends on mounting pattern of screen

Maximum Screen Thickness: 2" (51 mm)

Minimum Depth: 0.75" (19.1mm)

Mounting Pattern Compatibility (Universal Versions): 200 x 200mm - 800 x 500mm

Orientation: Landscape

Overall Dimensions (H x W x D): 21.6" x 35.7" x 0.8" (548 x 907 x 19mm)

Shipping Weight: 7 kg

Solution Type: Universal

Tilt: + 0° , - 12°
