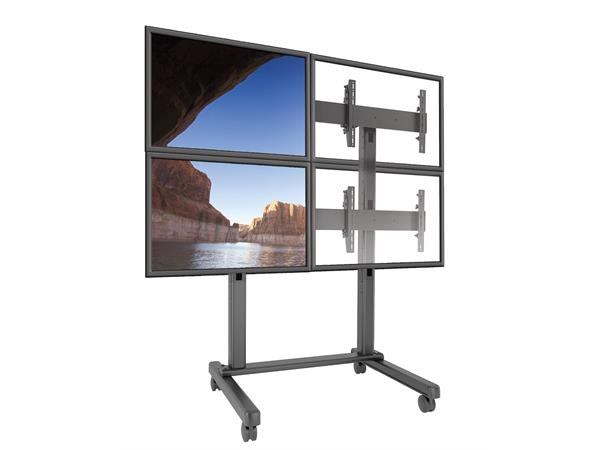

Chief LVM2X2U
FUSION™ 2 x 2 Micro-Adjustable Large Freestanding Video Wall
Chief's FUSION cart freestanding solution makes it possible to construct video walls in prominent locations for temporary situations.
Screen array configuration: 2 screens wide x 2 screens high.
Confirm screen compatibility with MountFinder™.
Features
• 2 x 2 screen arrangement for 40 - 60" screens
• Easily align displays with independent height, plumb and lateral shift adjustment
• Smooth rolling casters for effortless positioning (1 locking caster per leg)
• Integrated cable management for a clean installation
• Available leveling feet (FCA776) for more permanent installations
Specifications
Center of Display to Floor/Table Range: 609.6 mm (minimum bottom row) 1829 mm (maximum top row)
Color: Black
Manual Height Adjustment: Micro-adjustment up to 19 mm per screen
Mounting Pattern Compatibility (Universal Versions): any width x 100 mm - 400 mm
Orientation: Landscape
Overall Dimensions (H x W x D): 2045 x 1842 x 1026 mm
Plumb Adjustment: Micro-adjustment up to 19 mm
Solution Type: Universal
Typical Screen Sizes: 40 - 60"
Weight Capacity: 56.7 kg per screen
