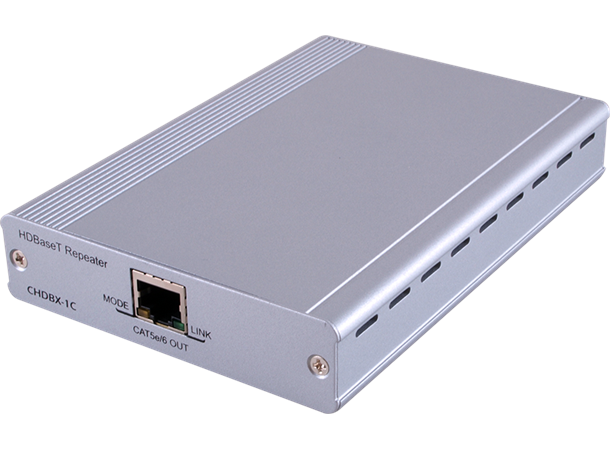

Cypress CAT5e/6/7 Repeater with PoE/LAN


The HDBaseT™ Repeater allows HDBaseT systems to be extended and cascaded. The model supports the highest quality of uncompressed high-definition HD video up to 4K×2K (Ultra HD), up to 8 channels of uncompressed multi-channel audio, RS-232 and IR control systems, PoE and Ethernet, complete HDBaseT 5Play™ convergence with just a simple connection over a single CAT5e/6/7 cable.



•HDCP and DVI compliant
•Supports 3D over HDMI and 4K×2K (Ultra HD) resolution
•Supports CEC bypass
•Doubles up the distance of HDBaseT transmission between transmitter and receiver, with a single repeater
•Uncompressed video 1080p@60Hz/36-bit and 4k×2K (Ultra HD)
•Audio support up to LPCM 7.1CH, Dolby TrueHD and DTSHD Master Audio
•5Play Convergence supports Full uncompressed HD Video, Audio, Ethernet, Power and Controls (IR and RS-232) over a single CAT5e/6/7 cable
•Powered by compatible transmitter without power supply connection (PoE)



Inputs  1x RJ45 [1x HDMI & Propriety Data]
Outputs  1x RJ45 [1x HDMI & Propriety Data]
PSU:  24V/1.25A
Dimensions  102mm [W] x 145mm [D] x 25mm [H]
Net Weight  324g
