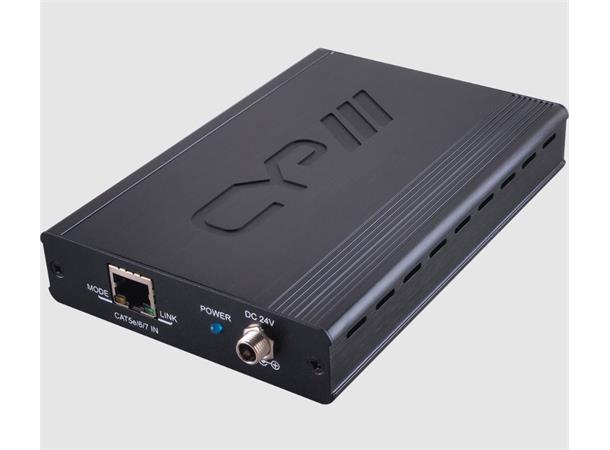

Cypress CAT5e/6/7 Repeater
The HDBaseT™ Repeater allows HDBaseT systems to be extended and cascaded. The model supports the highest quality of uncompressed high-definition HD video up to 4K×2K (Ultra HD), Audio and Control (RS232 / IR) 3Play™
- HDMI, DVI and HDCP compliant
- Supports 3D over HDMI and 4k×2k (Ultra HD) resolution
- Supports CEC bypass
Doubles up the distance of HDBaseT transmission between HDBaseT Lite transmitter and receiver, with a single repeater. The transmission distance can be added up 60 meters for every additional repeaters up to 3 tiers
Uncompressed video support up to 1080p@60Hz/36-bit and 4k×2K (Ultra HD) - Audio support up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
- 3Play Convergence: Full uncompressed HD Video, Audio and Controls (IR and RS-232) over a single CAT5e/6/7 cable
- Installation friendly
Inputs 1x RJ45 [1x HDMI & Propriety Data]
Outputs 1x RJ45 [1x HDMI & Propriety Data]
PSU: 24V/1.25A
Dimensions 102mm [W] x 145mm [D] x 25mm [H]
Net Weight 324g
