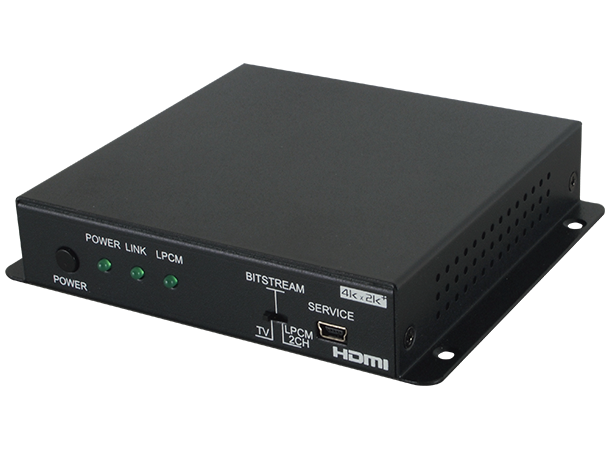

HDMI 4K UHD+ Audio Extractor (LPCM 2.0)

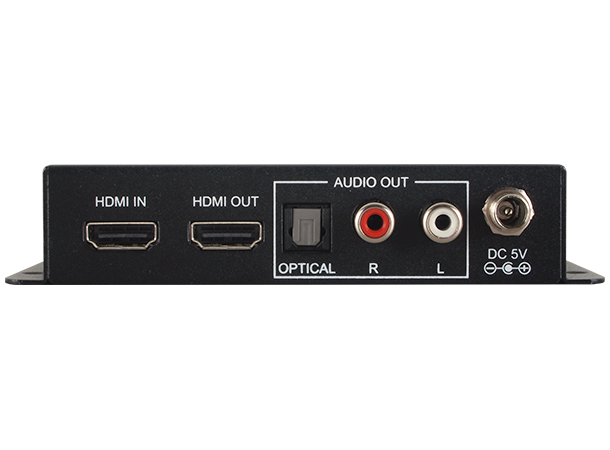

This 4K UHD LPCM 2.0 Channel Audio Extractor can extract up to 8 channels of LPCM audio from an HDMI source, allowing the user to convert high quality lossless HDMI audio into two-channel analog signals for use with powered speakers or non-HDMI AV receivers. Bitstream extraction is also supported via an optical S/PDIF output. Both the input and output HDMI ports support 4K UHD resolutions up to 4K@60Hz (YUV4:4:4, 8-bit) and are capable of providing high quality audio and video performance. This unit supports passthrough of HD bitstream audio formats, as well as standard bitstream formats and LPCM 7.1 with audio sampling rates up to 192 kHz. Built-in EDID management support allows the user select from multiple EDIDs and, with the use of optional PC software, to edit, upload and download EDID files.
HDMI input and output with 18Gbps (600MHz) 4K UHD supportDVI 1.0 compliant with the use of an HDMI-DVI adaptorHDCP 1.4 and 2.2 compliantSupports HD resolutions up to 3940x2160@60 Hz (YUV 4:4:4, 8-bit) & 4096x2160@60 Hz (YUV 4:4:4, 8-bit)Supports 48-bit Deep Color up to 1080p@602 slots for user-created EDIDs, and EDID bypass supportSupports pass-through of LPCM 7.1, bitstream and HD bitstream audio formats over HDMIAudio extraction to 2 channel analog output and optical S/PDIF outputSupports HDMI audio sampling rates up to 192 kHzSupports S/PDIF audio sampling rates up to 192 kHzProvides EDID management with EDID bypass and 2 user modifiable EDIDsPC based EDID management tool supportSupports RS-232 style control via a Virtual COM port over USB
