Cypress CPRO-11SI
HDMI 4K Audio Inserter
Applications:

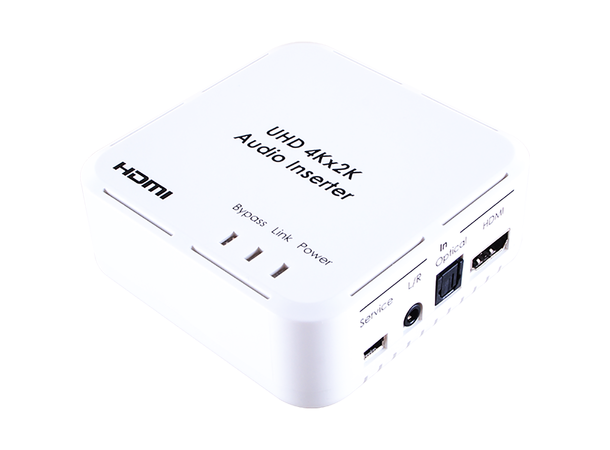

The HDMI Audio Inserter is a device that lets you insert an external audio signal into your HDMI/DVI source. The device allows you to insert stereo and multi-channel surround sound signals to give users the capability to select their favorite audio formats while extending your audio signal, then the HDMI Audio Inserter is the perfect choice.

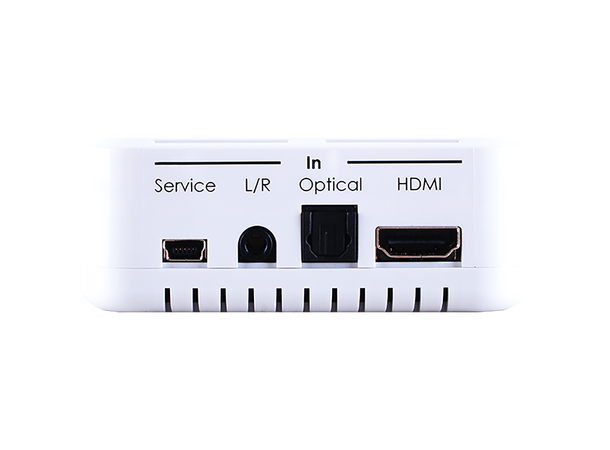

External audio input to HDMI
DVI video with audio to HDMI signal output
Alternative audio selection to HDMI output
Features:
Compliant with HDMI, HDCP 1.2 and DVI 1.0
Supports HDMI Sample Rates up to 192 kHz
Supports Optical Sample Rate up to 48 kHz
Supports TMDS clock frequency rate 225MHz
Supports high-bit-rate (HBR) audio
HDMI cable distance test with 1080p 8/12bit resolution, the input & output can run up to 10 meters
Low power consumption
Supports 3D signal
CEC Bypass
Support 4K/2K and 3D signals
