Interface: USB 3.0, USB 2.0
OS drivers: UVC and UAC device
Dimensions: 3.54? × 2.36? × 0.91? (90 mm × 60 mm × 23 mm)

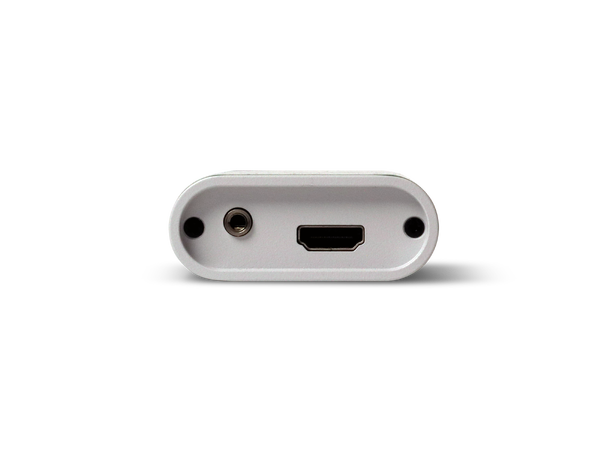

Connectors: HDMI, USB 3.0 B-Type connector
Input: HDMI (including audio), 3.5 mm analog (audio)
Input resolution: Up to 1920×1200
Output formats:

Note: Third-party software will set frame size and frame rate. Available resolutions Available frame rates
320×240, 640×360, 640×480, 720×480, 720×576, 768×576, 800×600, 856×480, 960×540, 1024×576, 1024×768, 1152×864, 1280×1024, 1280×720, 1280×800, 1280×960, 1360×768, 1366×768, 1440×900, 1600×1200, 1600×900, 1680×1050, 1920×1080, 1920×1200 5 fps to 60 fps
Output color space: YUV 4:2:2
Capture latency: Near zero (third-party applications may add to capture delay)
HDMI audio (input): 16-bit and 24-bit PCM encoded audio at 32 kHz, 44.1 kHz, and 48 kHz sampling rates
Audio output: 16-bit 48 kHz stereo sampling rates
LED: One LED to indicate status (power, readiness, operation in progress)
Power consumption <400ma
OS support: Windows 10 and up, Mac OS X 10.10 and up, Linux distribution with kernel 3.5.0 or higher
HDCP compliance: Can’t capture from video sources protected by HDCP (High-bandwidth Digital Content Protection)
