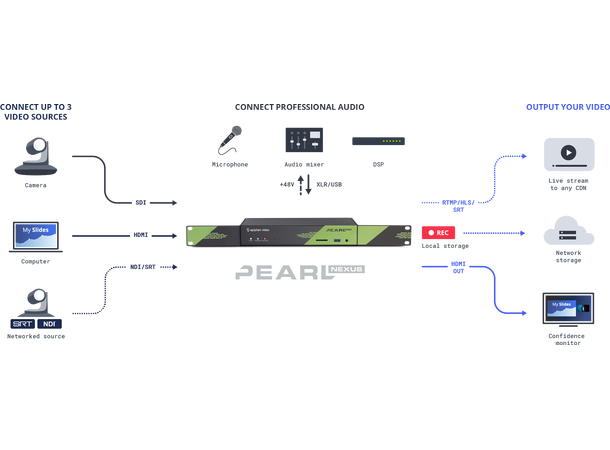

Video inputs
Local video inputs:1 (1) 3G SDI
(2) HDMI™ 1.4a2
(2) USB 3.0 (UVC)3 – rear panel
Video over Ethernet:3 (1) RTSP
(1) SRT (push)
(2) NDI|HX
(1) Browser

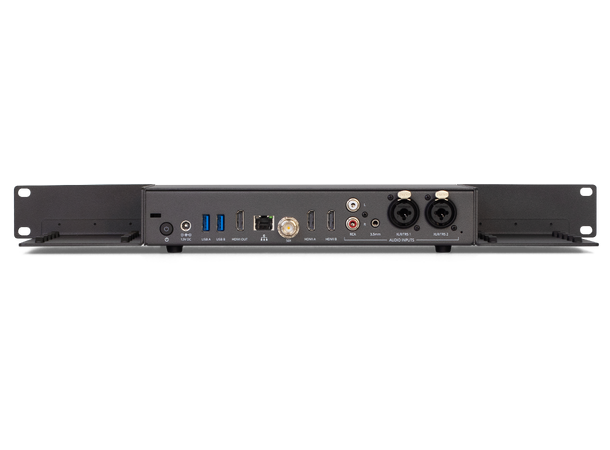

Connectors: (2) HDMI type A (female)
(1) BNC (female)
(2) USB-A (female) – rear panel
(1) RJ-45 (female)
Aspect ratios: 3:2, 4:3, 16:9, 16:10, and custom aspect ratios
Standard resolutions: PAL, PAL wide, NTSC, NTSC wide
Input resolution range: 640×480 to 1920×1200
Frame rate: Up to 60 fps
Video input color spaces: HDMI: RGB 4:4:4, YCRCB 4:2:2, YCRCB 4:4:4
SDI: RGB 4:4:4, YCRCB 4:2:2
Deinterlacing: Yes
Maximum cable length for 3G-SDI: 300 ft
Maximum cable length for USB 3.0: 6 ft
Audio inputs
Analog audio inputs: (2) XLR mic level/pro line level (+4.0 dBu) up to 12.3 VRMS +24 dBu (balanced/unbalanced, mono or L/R stereo pair); phantom optional
(2) 1/4? TRS pro line level (+4.0 dBu) up to to 12.3 VRMS, +24 dBu (balanced/unbalanced, mono or two L/R stereo pairs)
(1) RCA consumer line level -10 dBV (L/R stereo pair)
(1) 3.5 mm stereo input for electret microphones (unbalanced)
Connectors: (2) XLR/TRS combo jacks (female)
(2) RCA (female)
(1) 3.5 mm (female) – rear panel
Digital audio inputs:4 (1) SDI5
(2) HDMI
(2) USB (rear panel)
(1) RTSP (from RTSP input over Ethernet)
(1) SRT (from SRT input over Ethernet)
Connectors: (2) HDMI type A (female)
(1) BNC (female)
(2) USB-A (female) – rear panel
(1) RJ-45 (female)
Audio gain control: 0 dB to +30 dB
Audio mute: Yes
Configurable audio delay: -300 ms to +300 ms
Video processing
Video output color space: 4:2:0, 8 bits per color
Video codec: H.264/AVC (ITU H.264, ISO/IEC 14496-10) 4:2:0, 8-bit color
– Encoding profile: High, Main, Baseline
– Profile levels: 3.0, 3.1,3.2,4.0,4.1
Motion JPEG
Bitrate: 1 to 50 Mbps (selectable)
Bitrate control: Constant
Hardware accelerated video encoding: Optional
Video scaling: Software
Key frames: 1/2 s and 1 s up to 5 s in 1-second intervals
Remote access: Remote login for rescue troubleshooting and control.
Cloud versions of the Admin panel and Epiphan Live available for Internet access.
Audio processing
Compression: MP3, AAC, and PCM
Sampling rate: MP3: 22 kHz, 44 kHz, 48 kHz
AAC: 16 kHz, 22 kHz, 44 kHz, 48 kHz
PCM: 22 kHz, 44 kHz, 48 kHz
Bitrate: 64 to 320 kbps (MP3 and AAC)
Video output
Signal types: (1) HDMI 1.4a
(3) H.264/AVC digital video over Ethernet
Connectors: (1) HDMI
(1) RJ-45 (female)
Encoded channels: Up to three 1080p channels at 30 fps with one full HD video source per channel (recommended)
Streaming protocols: MPEG-TS, and FLV
RTSP over TCP/UDP
SRT (push) over UDP
HLS (push) over HTTP/HTTPS
Multi-publish to streaming server / CDN (SRT, RTSP, RTMP, RTMPS)
HLS (pull) – Native Apple HTTP/HTTPS stream for iPad, iPhone and iPod Touch
Multicast streams: RTP, MPEG-TS & RTP, and MPEG-TS over UDP and SAP
Resolution ranges: Recorded: 480p to 1920×1200p
Confidence monitoring: 480p to 1920×1200p
Streamed: 480p to 1920×1200p
Frame rate: Up to 60 fps
Formats: H.264/AVC (ITU H.264, ISO/IEC 14496-10) 4:2:0, 8-bit color
– Encoding profile: High, Main, Baseline
– Profile levels: 3.0, 3.1,3.2,4.0,4.1
Motion JPEG
Network traffic shaping (multicast streams): 4 Mbps to 95 Mbps (configurable)
Audio output

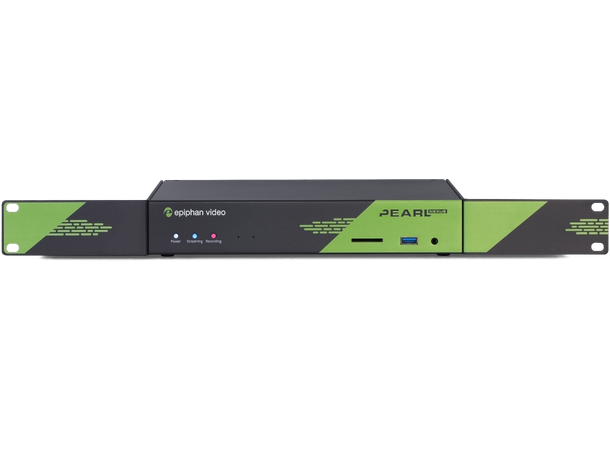

Analog audio output: (1) 3.5 mm stereo headphone jack – front panel
Digital audio outputs: RTSP and SRT audio over Ethernet
HLS audio over HTTP/HTTPS
HDMI audio (embedded)
Monitor and control
USB keyboard: Connect a standard USB keyboard (optional)
USB status light: Connect a single USB status light (optional); supported models:
– Kuando BusyLight UC Alpha and UC Omega
– Delcom Products USB HID single-color and multi-color signal indicators
Recording and storage
Record formats: AVI, MOV, MP4, and MPEG-TS
File upload formats: JPEG, PNG
Internal storage: 1 TB SSD
SD card: Available in future firmware6
File system for SD card: TBD
File transfer protocols: FTP, SFTP, SCP, AWS S3 client, and WebDAV client RSync
Network file share protocols: CIFS/SMB
File system for USB storage: FAT16, FAT32, XFS, EXT2, EXT3, EXT4, NTFS
External USB ports: (1) USB 3.0 0.9A – front panel
(2) USB 3.0 0.9A (UAV/UAC) – rear panel
Bitrate: Up to 50 Mbps
Communication
USB standards: USB 1.1, USB 2.0, and USB 3.0
HDCP compliant
Serial port: (1) Bidirectional RS-232 (via a USB to serial adapter)
Serial protocols: Data bits: 7 or 8 (default)
Stop bits: 1
Parity: None
Flow control: None, Hardware or Software
Serial port baud rate: 19200 bps
Ethernet host port: (1) RJ-45 (female)
Optional second port8
Ethernet data rate: 10/100/1000 Base-T, half/full duplex with autodetect
Dual NIC Yes8
Maximum Transmission Unit: 68 to 1500 MTU (configurable)
Protocols: DHCP, TLS 1.2, LDAP, mDNS, SAP, RTP, MPEG-TS & RTP and MPEG-TS/UDP, 802.1x, EAPOL, EAP-TTLS, EAP-TLS, PEAP, HTTP, HTTPS, NTP, PTP, FTP, SFTP, SCP
AWS S3
Network discovery/announce: SAP
Network security
802.1x EAP methods: PEAP, EAP-TLS, EAP-TTLS
Administration and control
Admin panel: Local web UI for full administration.
Epiphan Live: Local web-based UI to easily control streaming, recording, and switching.
Secure access: Multiple user accounts and passwords.
HTTPS for secure Admin panel and Epiphan Live access, as well as local network access to the live channel broadcast.
Remote access: Epiphan Cloud™ for remote device management and remote login7.
API: Yes (HTTP/HTTPS or RS-232)
Integrations
Content management systems: Kaltura
Panopto
YuJa
Opencast
Cloud access and management:
Epiphan Edge
Control platforms: Crestron: https://applicationmarket.crestron.com/epiphan
Q-SYS: https://www.qsys.com/alliances-partnerships/epiphan-video/
AC/DC power adapter
Model: ADP 60KD BA
Input power rating: 90 to 240 VAC, 47 to 63 Hz
Output power rating: 12 VDC, 5.0 A, 60 W
Active efficiency (average): 88%
Efficiency (10% load): 95%
No load consumption: 0.21 W
Power adapter manufacturer: Delta Electronics Inc.
3 Tungyuan Road, Chungli Industrial Zone, Taouyan City 32063, Taiwan
General
Operating temperature: 32° to 104° F (0° to 40° C)
Cooling: Fan air flow: side to side
Enclosure: Metal

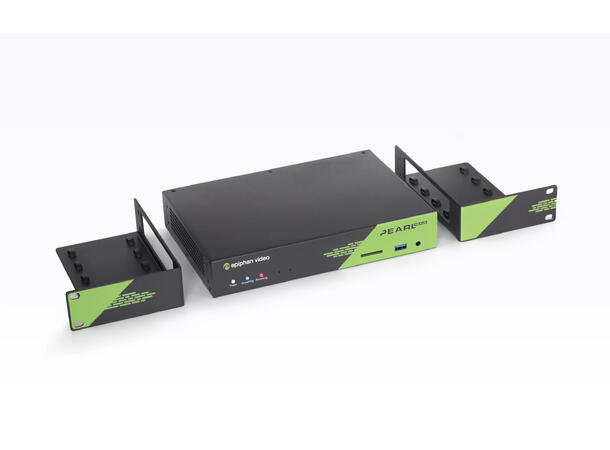

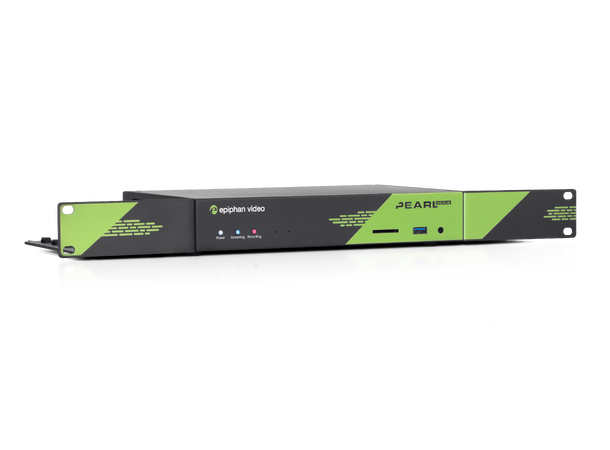

Form factor: 1RU (Rackmount Unit) with detachable mounts
Dimensions ( W × D × H ): 19” × 7 1/2” × 1 3/4” (483 mm × 190 mm × 43 mm)
Rackmount brackets installed, rubber feet removed
Weight: 5.3 lbs (2.4 kg)
Power supply: External: 1.5 A, 100-240 VAC, 50 to 60 Hz (60 W); 1.3 A, 100-240 VAC, 50 to 60 Hz (84 W)
Input power rating: 12 VDC, 5.0 A (maximum / 60 W PSU); 12 VDC, 7.0 A (maximum / 84 W PSU)
