Global Cachè

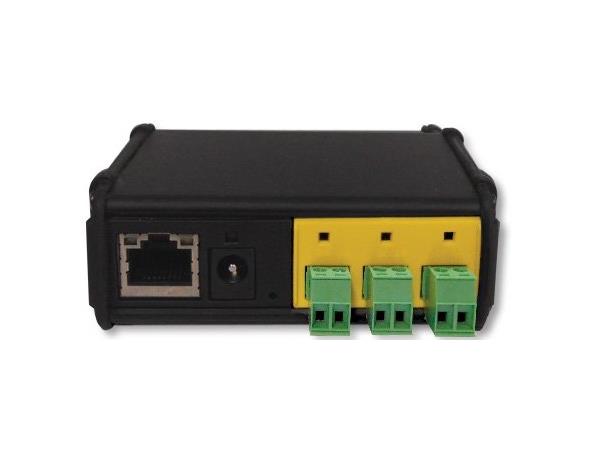

iTach TCP/IP to Contact Closure (Relay) with Power Over Ethernet
Seamlessly connect, monitor, and control relay activated devices over a network and the Internet. The iTach TCP/IP (Ethernet) devices provide a new level of automation and control flexibility, enabling device networking in homes, businesses, or schools. The product is based on open systems and standards for easy integration and compatibility with PC based control software, iPhone/iPod/iPad control apps, and high-end control systems.
Power Input
5 to 16V DC@300mA (wall power adapter included)
International plugs available
USB power cable draws power from USB port (included)
Power over Ethernet enabled
Setup
Integrated web server for easy configuration
Configure through TCP/IP set up commands
iHelp Setup Utility
Downloadable iHelp software simplifies network discovery and setup
IR Learning Utility
Downloadable iLearn software allows for the capture and playback of IR commands for control uses
Network Connection
RJ45 Connector
100/10 Mbits Ethernet Protocol
Adheres to TCP, DHCP and HTTP standards
LED Indicators
Power and all connectors to indicate activity
Contact Closure/Relay
3 Integrated contact closure relays w/ transient voltage suppression
Pluggable screw terminal 24V AC/DC@.5A N.O. contact
Allows for switching of low voltage wiring
Device Packaging
Aluminum extrusion case, rubber end caps and plastic face plates
Dimensions (LxWxH): 3.25″ x 2.25″ x 1.25″
Weight: 3.25 oz. (6 oz. with power supply)
Certifications
FCC (Part 15, Class B), C-tick, CE
RoHs compliant
Warranty
Two year limited warranty
Support available via phone, email, and comprehensive support portal
