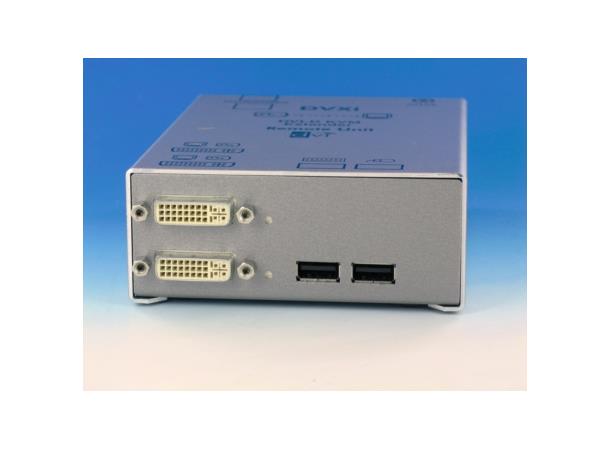

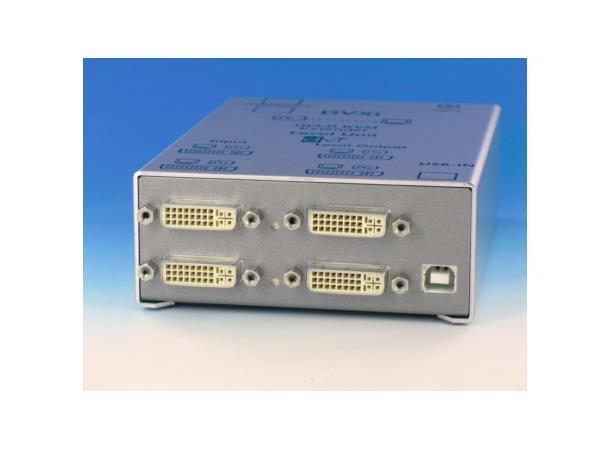

DVI CATx KVM Extender
"Enhanced Video"
Digital KVM extender offering crystal-clear DVI video (UXGA) using a single CATx cable over lengths of up to 140m.The latest extension technology ensures perfect image quality without degradation over distance
- Supports DVI-D Digital Video (Max 1920x1200/60Hz)
- Perfect Image Clarity: Independent of Extension Distance
- Local Monitor Connection (Dual Access)
- USB Keyboard & Mouse (HID) Support
- Flash Upgradeable
- Isolated CATx Link Interface: Ideal for Use in Electrically Noisy Environments
- Dual-Head Video
Video Interface
DVI-D (Digital) Only: Single-Link, Not HDCP Compliant
Maximum Resolution: 1920x1200 @ 60Hz
Colour Depth: 18/21-bit
DDC Emulation & Transfer
Local DVI-D Output
Dual-Head Video
CPU Interface
USB Keyboard & Mouse
Supports Two HID Devices
Can Support Other HID Devices (e.g. Touchscreen)
CATx Interface
Single CATx Cable (CAT5e or better)
Electrically Isolated Link Interface
Maximum Distance: 140m (70 meter ved UTP kabel)
Power
External PSU Required For Both Local & Remote Units
Universal Input Switchmode PSUs Supplied
Dimensions
103 x 143 x 42 mm
Various Rackmount Options
