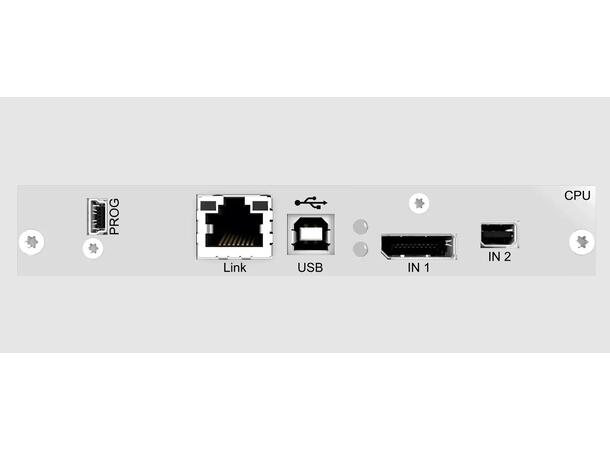

Input
Primary channel: 1x DisplayPort 1.1
Secondary channel: 1x Mini DisplayPort 1.1

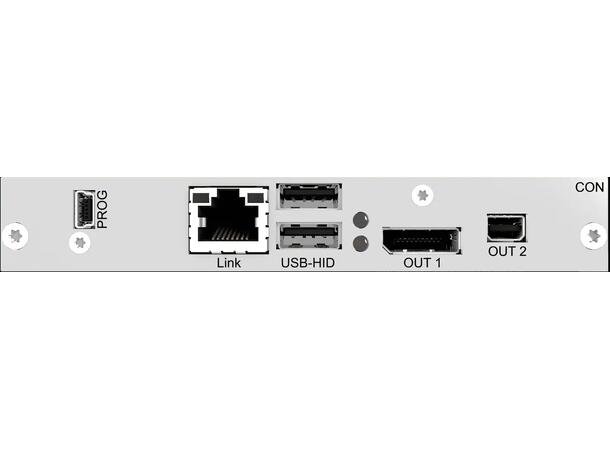

Output
Primary channel: 1x DisplayPort 1.1
Secondary channel: 1x Mini DisplayPort 1.1
Audio (embedded)
Stereo Linear Pulse Code Modulation (LPCM), DTS, DTS-HD (5.1), Dolby Digital, Dolby Digital Plus (5.1)
Maximum Resolution
Single Head: up to 4096 x 2160 @ 30 Hz
Dual Head: up to 2x 1920 x 1200 @ 60 Hz
Color Depth
8 bit / True Color
Maximum transmission range for video and USB-HID signals (end-to-end connection)
Cat X: 140 m (459 ft)
Single-Mode 9µm: 10,000 m (32,808 ft)
Single-Mode 9µm XV: 5,000 m (16,404 ft)
Multi-Mode 50µm (OM3): 1,000 m (3,280 ft)
Multi-Mode 50µm: 400 m (1,312 ft)
Optional Interfaces
USB 2.0 embedded, analog audio with RS232 or RS422, digital audio, PS/2, balanced audio
Keyboard/Mouse
USB-HID
NOTICE:
Transmission ranges for transparent USB when using add-on modules
When using L474/R474 add-on modules with transparent USB, the binding specifications stated in the data sheets of the add-on modules apply.
