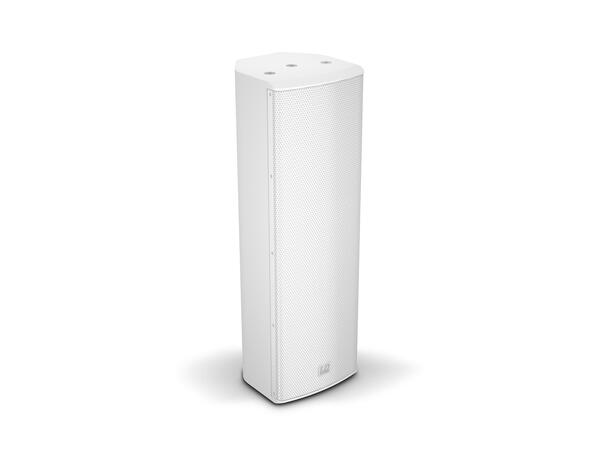

LD Systems SAT 262 G2W
2 x 6,5" passive Installation Speaker white
With its slim, streamlined design, the LD Systems SAT 262 G2 is excellently suited for permanent installation and discreet integration in virtually any setting. It features two 6.5" custom woofers and a 1” Celestion compression driver connected to a rotating CD horn with 80° x 60° dispersion. This makes the passive 2-way speaker ideal for both vertical and horizontal use.
The SAT 262 G2 attains a maximum sound-level pressure of 116 dB over a frequency response curve of 65–19 kHz with a permanent load capacity of 180 watts. The reflex housing is made of 12 mm MDF and is equipped with four M8 mounting holes. A speakON-compatible socket and a terminal block provide input options, while an additional terminal block serves as an output for convenient parallel connection
Spesifikasjoner
Product number: LDSAT262G2W
Product type: Installation Monitor
Type: passive
Low/mid driver dimensions: 2 x 6,5"
Woofer size 2x165,1mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
HF driver dimensions: 1"
HF driver dimensions (mm): 25,4mm
HF driver magnet: Ferrite
HF driver brand: Celestion
Dispersion (H x V): 80 x 60
RMS: 180W
Peak power: 360W
Frequency response: 65 - 19000Hz
SPL (1W/1m): 93dB
Max. SPL: 116dB
Impedance: 8Ohm(s)
Protection circuits: HF Driver
Loudspeaker inputs: 2
Speaker input connections: Speakon, Termional block
Cabinet material: 12 mm MDF
Cabinet / Housing surface: texture paint
Cabinet colour: white
Cabinet construction: Vented
Width: 200mm
Height: 630mm
Depth: 205mm
Weight: 9.8kg
