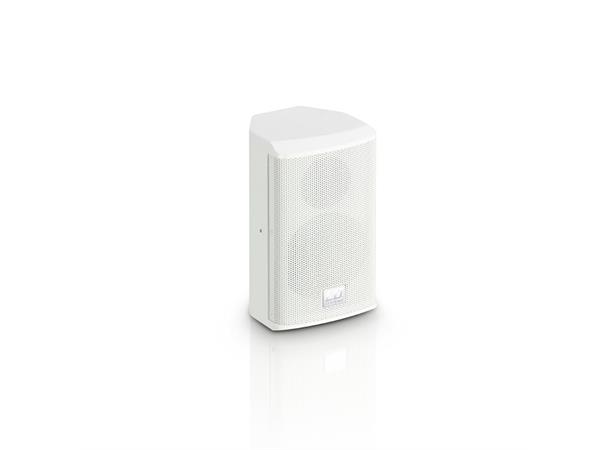

LD SAT 42 G2 W
4" passive Installation Monitor white
The LD Systems SAT42G2 is an ultracompact 2-way speaker that is suitable for smaller installations and unobtrusive integration in practically any surroundings, e.g., in bars and restaurants, retail shops or even at home.
A balanced sound with a 60° x 60° dispersion angle and a maximum sound-level pressure of 103dB is ensured by the 4" custom woofers and a 1 silk dome tweeter with wave guide. The impedance of 16 ohms permits parallel operation of eight SAT42G2 speakers on 2 ohms. For a deeper bass foundation with powerful drive, the subwoofers in the LD installation series are the ideal addition.
The cabinet with a rugged textured coatingis made of 12 mm MDF and is available in black and white. M6 inserts and an included mounting bracket provide varied possibilities for mounting; a universal joint mount is available as an accessory. It is connected via spring terminals.
Product number: LDSAT42G2W
Product type: Installation Monitor
Type: passive
Low/mid driver dimensions: 4"
Low/mid driver dimensions (mm): 101mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
HF driver dimensions: 1"
HF driver dimensions (mm): 25mm
HF driver magnet: Ferrite
HF driver brand: Custom-made
Dispersion (H x V): 60 x 60°
RMS: 60W
Peak power: 240W
Frequency response: 75 - 20000Hz
SPL (1W/1m): 85dB
Max. SPL: 103dB
Impedance: 16Ohm(s)
Protection circuits: HF Driver
Loudspeaker inputs: 1
Speaker input connections: Clamp connector
Cabinet material: 12 mm MDF
Cabinet surface: texture paint
Cabinet colour: white
Cabinet construction: Closed
Width: 140mm
Height: 230mm
Depth: 125mm
Weight: 5kg
