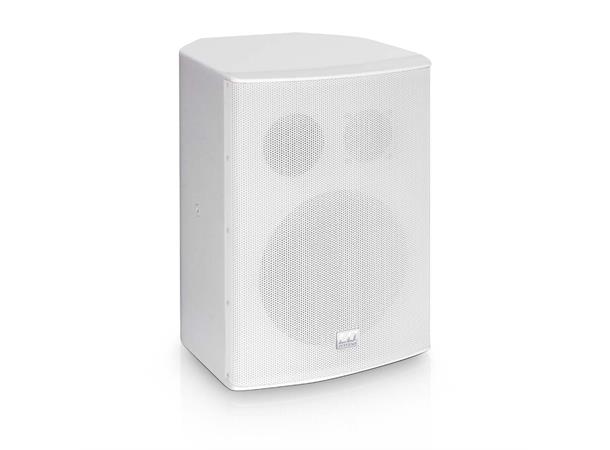

LD Systems SAT 82 A G2 W
8" Active Installation Monitor white
The LD Systems SAT82AG² is an active installation monitor, which provides a convincing performance on a PC or laptop and as a home studio monitor.
The compact 2-way bass reflex design is equipped with an 8" custom-made woofer and a 1" compression driver which are driven by an 80 Watt Class AB power amplifier. The input is a combo socket; an XLR socket is used to loop through the signal. With a frequency response of 50 Hz - 20 kHz and 114 dB maximum sound pressure, the SAT82AG² produces a balanced sound with high dynamics. The monitor features protection circuits for the tweeter against overcurrent, and a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.
The cabinet of the SAT82G² is made of 12mm MDF with M6 flight points and is available in black or white with a durable textured paint finish. A versatile mounting bracket is included; a universal joint mount is available as an accessory.
Product number: LDSAT82AG2W
Product type: Installation Monitor
Type: active
Low/mid driver dimensions: 8"
Low/mid driver dimensions (mm): 203.2mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
HF driver dimensions: 1"
HF driver dimensions (mm): 25mm
HF driver magnet: Ferrite
HF driver brand: Custom-made
Power amplifier (Class A): Class A/B
Dispersion (H x V): 60° x 60°
RMS: 80W
Frequency response: 50 - 20000Hz
Max. SPL: 114dB
Protection circuits: over voltage, HF Driver
Controls: volume
Indicators: overload, Power
Line input connectors: XLR, 6.3 mm Jack
Line output connectors: XLR
Operating voltage: transformer, 220 V AC - 240 V AC, 50-60 Hz
Cabinet material: 12 mm MDF
Cabinet surface: texture paint
Cabinet colour: white
Cabinet construction: vented
Width:274mm
Height:410mm
Depth:243mm
Weight:8.6kg
Accessories (included):wall bracket
