LD Systems ZONE 622

19" 2-Zone Mixer 1U

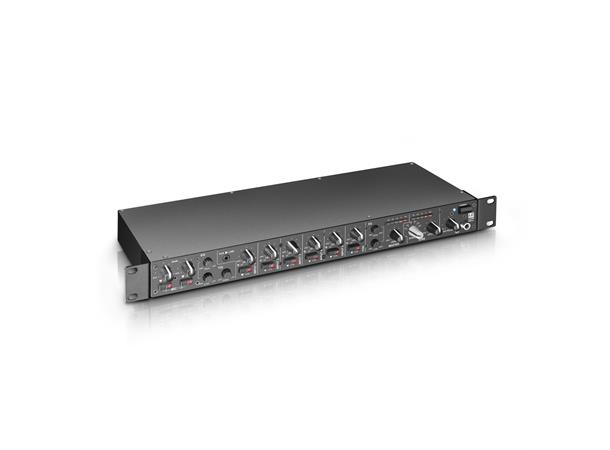

The ZONE 622 is a particularly compact 1U zone mixer with 6 line and 2 microphone channels, that can be assigned to a stereo or a mono master output. The device has all the essential functions, an input for an external emergency announcement system with its own volume control, and a connection to the remote-controlled switching mute. The ZONE 622 is suitable as a sound system for separate zones in restaurants, clubs, hotels, fitness centres, and for presentations.



The two balanced microphone channels with stereo jack inputs are equipped with controls for Gain, Talkover volume, Talkover attenuation, 12V phantom power and a shared 2-band EQ. The line channels 1 and 2 can also be used to connect unbalanced microphones, and channel 6 is specially designed for balanced FOH signals. The stereo input channels of the ZONE 622 have a Cue button and volume control signal display, and the channels 1-5 have an additional gain trimmer. Furthermore, the zone mixer has a 3.5 mm mini jack input and a USB port , that is used as a Stereo Input and Output (Recording Out). So you can use the ZONE 622 as an external audio interface.



The stereo and mono output sections have their own meters, 2-band EQ, trimmer for adjusting the maximum output level, as well as electronically balanced jack plugs and terminal block connectors. In addition, the stereo section has unbalanced RCA jacks. An adjustable headphone jack for previewing and a recording output complete the equipment for the ZONE 622.

Product number:LDZONE622

Product type:Zone Mixer

Number of Zones:2 (Master, Zone)

Type:stereo

Installation Height:1U

Total Input Channels:8 (2x Mic, 2x Mic/Line, 3x Line, 1x FOH)

Frequency response:20 - 40000Hz

Microphone channels:2 (with phantom power 12 V)

Microphone Channel Connections:6.3 mm stereo jack (balanced)

Microphone channel controls:1 x Talk Over Level, 1 x EQ Low, 1 x EQ Hi, Gain, On / Off, 1 x Talk Over Damp

Microphone Channels Display Elements:On-LED

Microphone Channels Input Impedance:4kOhm

Microphone Channels Input Sensitivity:6,1mV

Microphone Channels THD:0,08%

Line / Microphone Channels:2

Line / microphone input connectors:2 x RCA, 6.3 mm stereo jack (balanced), 3.5 mm stereo jack (input 1)

Line / microphone channel controls:Trim, level, Cue, mic/lline

Line / Microphone Display Elements:Cue-LED, Signa-LED

Line Channels:3

Line input connectors:Input 3-4: 2 x RCA, Input 5: 2 x RCA + USB

Line Channel Controls:Cue, Trim, level

Line Channel Display Elements:Signa-LED, Cue-LED

Line Channel Input Impedance:4kOhm

Line Channels Input Sensitivity:1,5V

Line Channels THD:0,03%

input sensitivity AUX/Line:3V

FOH Channels:1

FOH Input Connections:6.3 mm stereo jack (2 x balanced)

FOH Input Controls:Cue, level

FOH Input Display Elements:Cue-LED, Signa-LED

Line outputs:3 (Master - Stereo, Zone - Mono, Rec - Stereo)

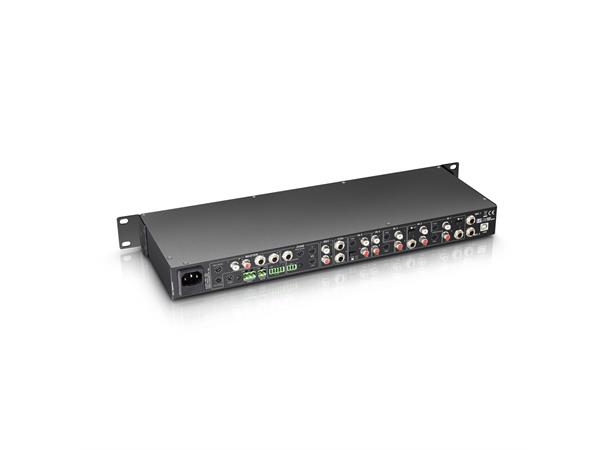

Output Connectors Master:6.3 mm stereo jack (2 x balanced), terminal block, RCA (x2)

Master Controls:level, EQ Low, EQ Hi, Max. Level

Master Display Elements:5-Segment Level Meter

Master Output Levels:(balanced) 24dBu, (unbalanced) 18dBu

Zone Output Connections:terminal block, 6.3 mm stereo jack (balanced)

Zone Controls:EQ Hi, Max. Level, EQ Low, Source Input 1-5/Mix, level

Zone Display Elements:5-Segment Level Meter

Zone Output Levels:24 (balanced/ unbalanced)dBu

Output Connections Rec:2 x RCA

Headphones ouput:1

Headphone Out Port:6.3 mm TRS

Headphone Output Controls:Cue Volume

Headphone Output Voltage:(@ 32 Ohm) 1.25V

Additional Inputs: 2 (Emergency Input, Output Mute)

Connections Additional Inputs: Terminal block

Additional Input Controls: Level Emergency Input

Additional Controls: power switch

Additional Display Elements: Power-LED

Operating voltage: 220 - 250 V AC, 50 Hz

Mains connector: IEC power connector

Power consumption: 18W

Fuse: T 500 mAL / 250 V

Width: 485mm

Height: 44mm

Depth: 179mm

Weight: 2.4kg

Accessories (included): Power cord, terminal blocks
