AWG-size: 26/7
Bending radius (dynamic): 50 mm
Bending radius (static): 25 mm
Cable: IEC 61156-6
Cable Construction: S/FTP

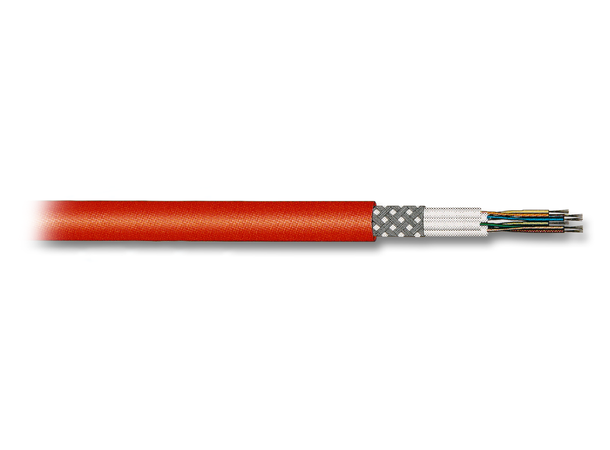

Cable type: Draka UC900 SS26 Cat.7 PUR
Cabling standards: ISO/IEC 11801
Capacity to earth: 1500 pF/km
Category: 7
Characteristic impedance: 100 ± 5 Ohm
Conductor category: Class 2 = stranded
Conductor material: Cu, blank
Core identification: Colour
Core insulation: Foam-Skin PP
Coupling attenuation: 80 dB
Delay skew: 12 ns/100m
Flame retardant: acc. EN 60332-1
acc. IEC 60754-2
acc. IEC 61034
Halogen free: acc. EN 50267-1
Halogen free (acc. EN 50267-2-2): True
Halogen free (according to EN 60754-1/2): True
Installation standard: EN 50174
Insulation resistance (500V): = 2000 MOhm/km
Jacket Material: Polyurethane (PUR)
Loop resistance: 290 Ohm/km
Low smoke: acc. EN 61034
Low smoke (according to EN 61034-2): False
Max. Freuqency: 1000 MHz
NVP value: 79 %
Permitted cable outer temperature after assembling without vibration: -30 – 75 °C
Permitted cable outer temperature during assembling/handling: 0 – 50 °C
PoE: acc. to IEEE802.3af PoE
acc. to IEEE802.3at PoE+
acc. to IEEE802.3bt 4PPoE
Resistance unbalance: 3 %
Screen over stranding: braiding
Screen over stranding element: Foil
Separation class acc. EN50174-2: C
Stranding element: Pairs
Test voltage DC, 1 min: 1000 V
UV resistance: no
