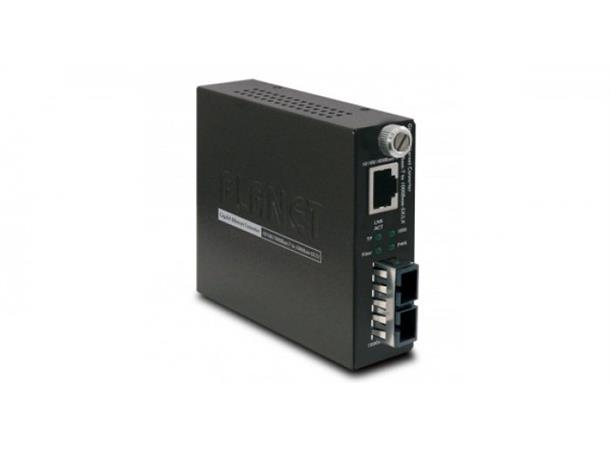

Planet GST-802S
10/100/1000Base-T to 1000Base-SX/LX Smart Media Converter
Key Features
• Standards:
- Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-
T, IEEE 802.3z 1000Base-SX/LX Ethernet Standard
• Interface:
- One 10/100/1000Base-T port with RJ-45 connector
- One 1000Base-SX/LX port with LC/SC/WDM connector supporting multi-mode or single-
mode fiber optic cable
- Auto-negotiation and Auto-MDI / MDI-X for 10/100/1000Base-T port
• Layer 2 Features:
- Back-pressure & IEEE 802.3x compliant flow control and full wire-speed forwarding
rate
- 9K Jumbo Frame size supported
- Link Loss Return (LLR) switch on each fiber optic to aid in troubleshooting remote
network connections
- Link Loss Carry Forward (LLCF) work with LLR in diagnosing network connections
• Smart Management:
- Provides DIP switch for fiber (Auto-negotiation / Manual) and LFP function
(Disable / Enable) setting
- Manageable through Web Smart / Managed Media Converter Chassis System (MC-
1600MR/MC-1610MR series)
- Bandwidth control / TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test function
provided with MC-1610MR / MC-1610MR48 Managed Media Converter Chassis System
• Hardware:
- Used as a stand-alone device or work with Web Smart / Managed Media Converter
Chassis for up to 16 converter with redundant power supply for optional expansion
use
- LED indicators for converter status
- Choice of fiber-connector from SC, LC, WDM, multi-mode / single-mode fiber /
1000Base-SX / LX mini GBIC module
- EMI standards complies with FCC, CE class A
