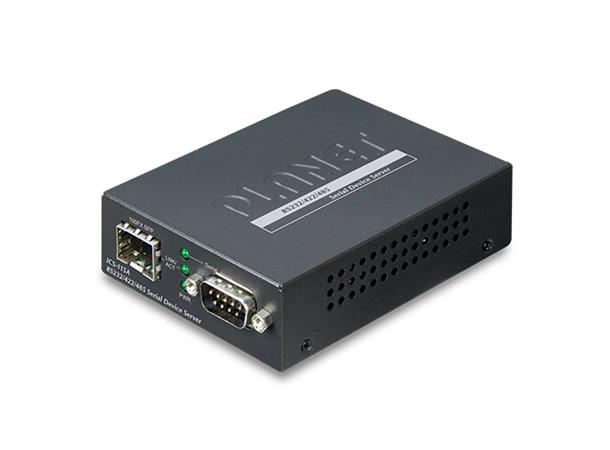

Planet ICS-115A

RS-232 / RS-422 / RS-485 over Fast Ethernet Media Converter

Serial Interface
 • One RS-232 / 422 / 485 port to one 100Base-FX Media Converter
 • Cost-effective solution for RS-232 to Ethernet application
 • Supports RS-232, 4-wire RS-422 or 2/4-wire RS485 operation
 • Asynchronous serial data rates up to 921600bps

Ethernet Interface
• Complies with IEEE 802.3u 100Base-FX standard
 • Choice of fiber-connector from SC / LC, multi-mode / single-mode fiber

Smart Functions
• Standard TCP / IP interface and versatile operation modes
 • Software Protocol Supported: ARP, ICMP,TCP / IP, UDP, HTTP server, DHCP client, Telnet server/client
• Built-in IP-based Web interface for remote management
 • Serial operation mode selected via Web management
 • Pair connection mode for connecting two serial devices over a network
 • PLANET Smart Discovery utility automatically finds PLANET devices on the network
 • Firmware upgrade via HTTP protocol

Hardware
 • Compact size for easy Installation
 -Standalone - Wall mountable or DIN-rail mounting (optional accessory)
 -Co-work with PLANET MC family Media Chassis (MC-700 / MC-1500 / MC-1500R / MC-1500R48)

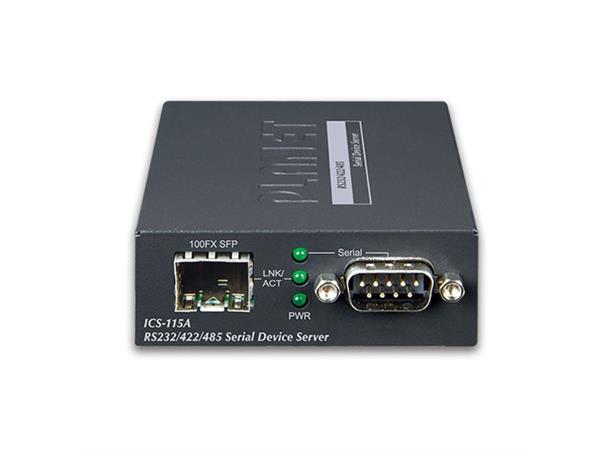

 • LED indicators for easy network diagnose
 • Reset button on the front panel for reset to factory default
