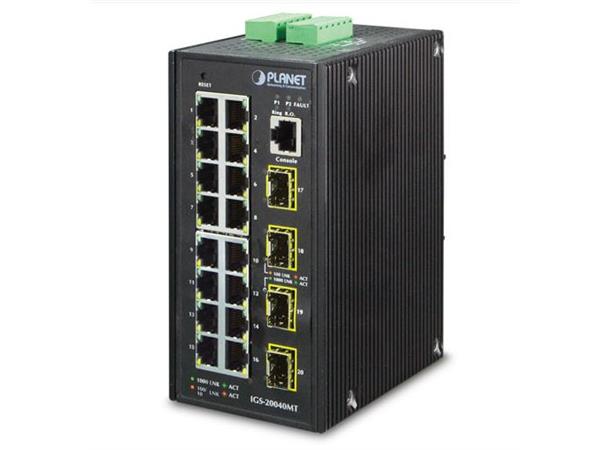

L2+ Industrial 16-Port 10/100/1000T + 4 100/1000X SFP Managed Switch (-40~75 degrees C)





Strømkrav: DC 9V to 48 / AC 24V





Physical Port•16-Port 10/100/1000Base-T RJ45 copper
•4 100/1000Base-X mini-GBIC/SFP slots, SFP type auto detection
•One RJ45 console interface for basic management and setup



Industrial Case / Installation•IP30 aluminum case protection
•DIN-rail and wall-mount design
•Redundant Power Design
- 12 to 48V DC, redundant power with polarity reverse protect function- AC 24V power adapter acceptable•Supports EFT protection for 6000V DC power and 6000V DC Ethernet ESD protection
•-40 to 75 degrees C operating temperature



Digital Input / Digital Output•2 Digital Input (DI)
•2 Digital Output (DO)
•Integrates sensors into auto alarm system
•Transfers alarm to IP network via email and SNMP trap



Layer 2 Features•High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
•Storm Control support
- Broadcast / Multicast / Unknown Unicast•Supports VLAN
- IEEE 802.1Q tagged VLAN- Up to 255 VLANs groups, out of 4095 VLAN IDs- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)- Private VLAN Edge (PVE)- Protocol-based VLAN- MAC-based VLAN- Voice VLAN•Supports Spanning Tree Protocol
- STP, IEEE 802.1D Spanning Tree Protocol- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol by VLAN- BPDU Guard•Supports Link Aggregation
- 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (Static Trunk)- Maximum 10 trunk groups, up to 8 ports per trunk group- Up to 16Gbps bandwidth(duplex mode)•Provides port mirror (many-to-1)
•Port Mirroring of the incoming or outgoing traffic on a particular port
•Loop protection to avoid broadcast loops
•Supports E.R.P.S. (Ethernet Ring Protection Switching)
•IEEE 1588 and Synchronous Ethernet network timing



Quality of Service•Ingress Shaper and Egress Rate Limit per port bandwidth control
•8 priority queues on all switch ports
•Traffic classification
- IEEE 802.1p CoS- IP TOS / DSCP / IP Precedence- IP TCP/UDP port number- Typical network application•Strict priority and Weighted Round Robin (WRR) CoS policies
•Supports QoS and In/Out bandwidth control on each port
•Traffic-policing policies on the switch port
•DSCP remarking



Multicast•Supports IPv4 IGMP Snooping v1, v2 and v3
•Supports IPv6 MLD Snooping v1 and v2
•Querier mode support
•IGMP Snooping port filtering
•MLD Snooping port filtering
•MVR (Multicast VLAN Registration)



Security•Authentication
- IEEE 802.1x Port-based / MAC-based network access authentication- Built-in RADIUS client to cooperate with the RADIUS servers- TACACS+ login users access authentication- RADIUS / TACACS+ users access authentication•Access Control List
- IP-based Access Control List (ACL)- MAC-based Access Control List•Source MAC / IP address binding
•DHCP Snooping to filter un-trusted DHCP messages
•Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
•IP Source Guard prevents IP spoofing attacks
•Auto DoS rule to defend DoS attack
•IP address access management to prevent unauthorized intruder



Layer 3 IP Routing Features•Supports maximum 32 static routes and route summarization



Management•IPv4 and IPv6 dual stack management
•Switch Management Interfaces
- Console / Telnet Command Line Interface- Web switch management- SNMP v1, v2c, and v3 switch management- SSH / SSL secure access•IPv6 IP Address / NTP / DNS management
•Built-in Trivial File Transfer Protocol (TFTP) client
•BOOTP and DHCP for IP address assignment
•System Maintenance
- Firmware upload/download via HTTP / TFTP- Reset button for system reboot or reset to factory default- Dual Images•DHCP Relay and DHCP Option82
•User Privilege levels control
•NTP (Network Time Protocol)
•Link Layer Discovery Protocol (LLDP) and LLDP-MED
•SFP-DDM (Digital Diagnostic Monitor)
•Network Diagnostic
- ICMPv6 / ICMPv4 Remote Ping- Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues•SMTP / Syslog remote alarm
•Four RMON groups (history, statistics, alarms and events)
•SNMP trap for interfacing Link Up and Link Down notification
•System Log
•PLANET Smart Discovery Utility for deploy management
