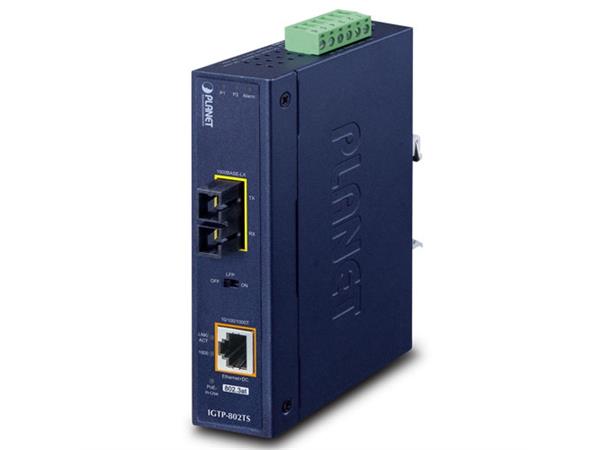

Planet IGTP-80xT Series

1000Base-SX / LX to 10/100/1000Base-T 802.3at PoE Industrial Media Converter



Leveres uten strømforsyning, se tilbehør
Strømkrav: 12 ~ 48V DC / 24V AC

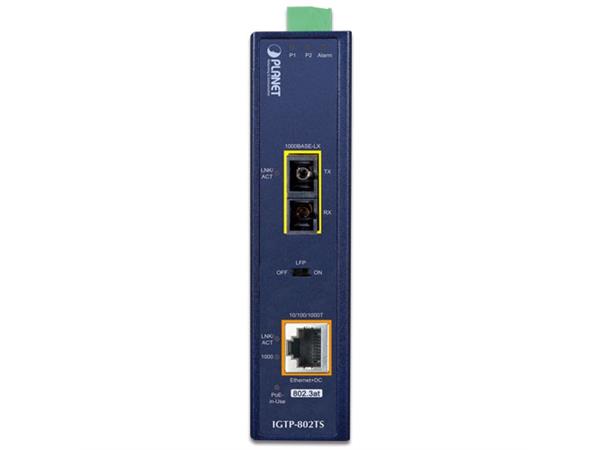

Physical Port
 • 1-Port 10/100/1000Mbps RJ-45 interface, auto-negotiation and auto MDI / MDI-X
 –1-Port Data + Power output, 802.3af / 802.3at PoE standard compatible
 –10/100/1000Base-T: 1-Port Cat. 5/5e/6 UTP cable, up to 100 meters
 • 1-Port Gigabit Fiber Interface
 –IGTP-802T: SC Fiber Interface
 –IGTP-802TS: SC Fiber Interface
 –IGTP-805AT: LC Fiber Interface (Vary on SFP Module, 100/1000 dual mode support)

Hardware
 • LED Indicators
 –System: Power 1, Power 2 and Fault LED
–Fiber port: LNK / ACT
 –10/100/1000Base-T port: LNK / ACT, PoE In-use
 • DIP switch: LFP (Link Fault Pass-through) mode selection

IEEE 802.3af / 802.3at PoE
 • Complies with IEEE 802.3af and IEEE 802.3at standard, End-Span PSE
 • 24V / 48V DC Power Input for PoE
 • Provides DC 52V power over RJ-45 Ethernet cable to devices with Ethernet port
 • Supports PoE Power up to 30 Watts for PoE port
 • Auto-detect of PoE IEEE 802.3at / IEEE 802.3af equipments, protecting the devices from
being damaged by incorrect installation
 • Remote power feeding up to 100m
 • IEEE 802.3at / IEEE 802.3af Splitter devices compatible

Industrial Case / Installation
• IP-30 Aluminum metal case protection
• DIN Rail and Wall Mount Design

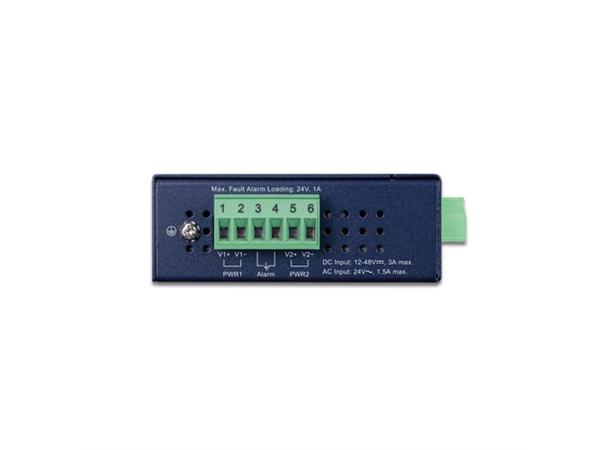

• 24 and 48V DC, redundant power with polarity reverse protect function and connective
 removable terminal block for master and slave power
• Supports EFT protection 6000 VDC for power line
• Supports 6000 VDC Ethernet ESD protection
• -40 to 75 Degree C operating temperature
