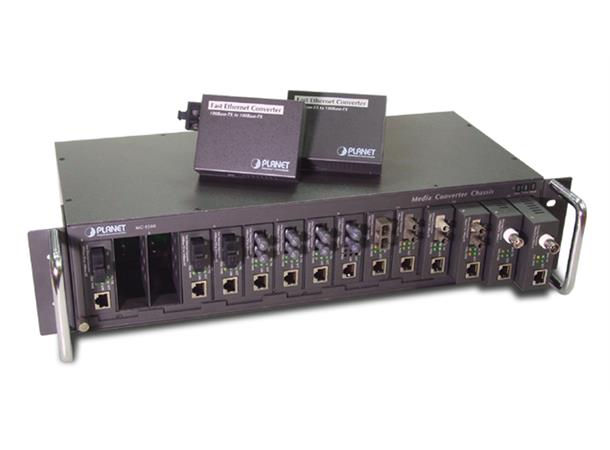

Planet 15-slot Chassis for Mediakonvertere
Providing more capacity to the converters in one chassis, the MC-1500 provides 15-slot in the 19"-rack saving more spaces for fiber-optic wiring yet ease the maintenance of media conversion. The MC-1500, media chassis allows the connectivity of up to fifteen PLANET Ethernet/ Fast Ethernet Gigabit Ethernet Converter in one chassis. Two fans with LED indicators for the system cooling and keep you informed in the system and FAN status. Independentpower supply in each bay of the MC 1500, you can freely install the converters without interrupting the rest of the networks. Moreover, each bay of the media center can deploy to PLANET's converter family like Ethernet, Fast Ethernet twisted pair to Fiber-optic conversion, Gigabit SX to LX conversion, etc.
Key Features:
High quality 19" Rack-Mountable Chassis installation
Supports up to fifteen (15) modular media converters
Two fans brings the air-flow for system cooling, and LED indicators for system and fan status
Bay power isolation, ensure each bay is electrically isolated from each other
Support multiple converters - 10/100/1000Mbps, copper, Fiber, single/multi-mode ST/SC/MTRJconnectors
Reduce the effort of converter maintenance and management, diagnose the status at one time
Cost-effective, easy install
SPECIFICATION
Product
Model
MC-1500
Slot
15 open slot; (27x 95 x 71 mm, WxDxH)
Dimension
438 x 200 x 103mm (W x D x H); 2.4U
Power Requirement
100 ~ 240V AC, 50 ~60Hz
Power output
+5V DC per slot, 1 A minimum
DC Output
+5VDC (+/-1%) per slot
LED indicator
3, Power, Fan A, Fan B (On: operating; Off: device or fan fail)
Environment
Temperature: 0~50 degree C (operating); -20~70 degree C (storage) Humidity: 0~90% (non-condensing)
Compliance
FCC Class A, CE-mark
