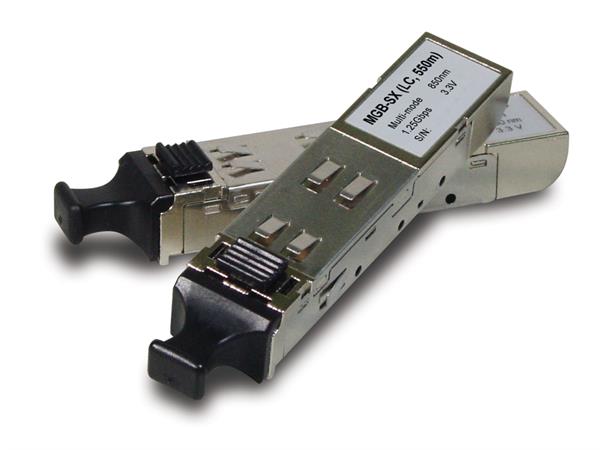

Planet MGB-Series Transceiver
1000Base-SX/LX SFP Transceiver
• Comply with the IEEE 802.3ab / 802.3z Gigabit Ethernet standard
• 1 X 1000Mbps TP/ LC fiber port
• Duplex LC connector
• Differential PECL inputs and outputs
• Single power supply 3.3V
• TTL signal detect indicator
• Hot Pluggable
• Class 1 laser product complies with EN 60825-1
• Plug and Play Installation
MGB-SX2
PHY Type IEEE 802.3z 1000Base-SX
Fiber Type Multi-Mode
Connector LC
Wavelength 1310nm
Maximum Distance 2km
Operating Temperature 0 ~ 60 degrees C
