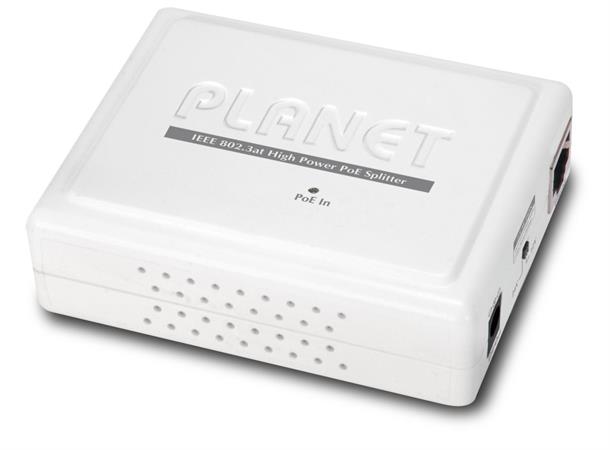

Planet POE-162S
IEEE 802.3at Gigabit High Power over Ethernet Splitter
Compliant with brand-new IEEE 802.3at High Power over Ethernet standard that support 25.5 Watts for maximum input power of per device. The POE-162S provides the following key features:
- IEEE 802.3at Power over Ethernet Standard Compliant
- 12V / 24V DC Power Output Through DIP Switch
- Passive 10/100/1000Mbps Duplex Mode Support
- Quick and Easy High Power PoE Network Deployment
Key Features
Interface
• 2-Port RJ-45 interfaces
–1-Port PoE Power+ Data input
–1-Port Data output
• 1 DC output plug connector
PoE
• Complies with IEEE 802.3at Power over Ethernet PD
• Splits the 52 ~ 56V DC power over RJ-45 Ethernet cable into DC 12V / 24V output
• Up to 1 non-IEEE 802.3at device can be powered
• Auto-detect of PoE IEEE 802.3at equipment, protects devices from being damaged by incorrect installation
• Adjustable two different output voltage options (12V / 2A, 24V / 1A) to fit various devices
• Distance up to 100 meters
Hardware
• Plastic case
• 12V / 24V DIP switch
• LED indicators power input indication
Standard Compliance
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3at Power over Ethernet standard
• FCC Part 15 Class A, CE
