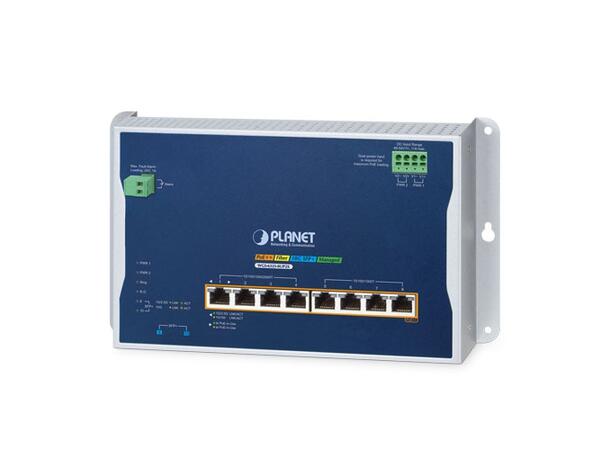

Hardware Specifications
Copper Ports 4 10/100/1000/2500BASE-T RJ45 auto-MDI/MDI-X ports (Ports 1 to 4)
4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Ports 5 to 8)
SFP+ Slots 2 1G/2.5G/10GBASE-X SFP+ interfaces
PoE Injector Port 8 ports with 802.3bt PoE++ injector function (Ports1 to 8)
RAM 512MBytes
Flash Memory 64MBytes
Reset Button < 5 sec: System reboot
> 5 sec: Factory Default
Connector 4-pin terminal block for power input
Pin 1/2 for Power 1 (Pin 1: V+ / Pin 2: V-)
Pin 3/4 for Power 2 (Pin 3: V+ / Pin 4: V-)
2-pin terminal block for event alarm
Alarm One relay output for power failure. Alarm Relay current carry ability: 1A @ 24V DC

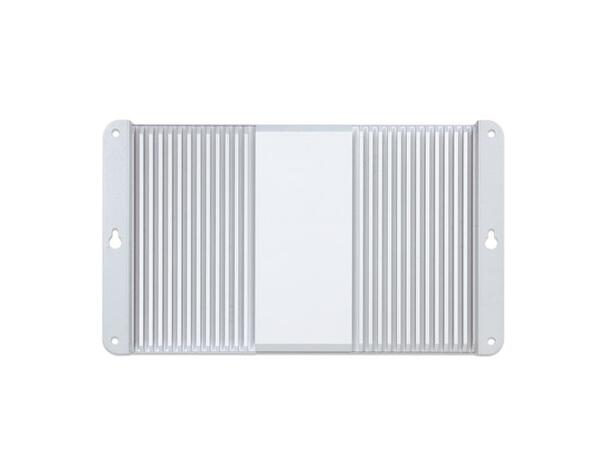

Enclosure IP30 aluminum case
Installation Wall-mount
Dimensions (W x D x H) 245 x 36 x 140 mm
Weight 1,230g
Power Requirements 48~54V DC
(>52V DC for PoE++ and PoE+ output recommended)
Dual power input is required for maximum power loading
Maximum current 11A
Power Consumption System on:
Max. 13.22 watts/45.08 BTU @54V DC input (240-watt PoE Budget)
Max. 16.97 watts/57.87 BTU @54V DC input (480-watt PoE Budget)
Full loading with 802.3bt PoE++ function:
Max. 256.2 watts/874.19 BTU @Single 54V DC input (240-watt PoE Budget)
Max. 496.9 watts/1694.43 BTU @Dual 54V DC input (480-watt PoE Budget)
ESD Protection 6KV DC

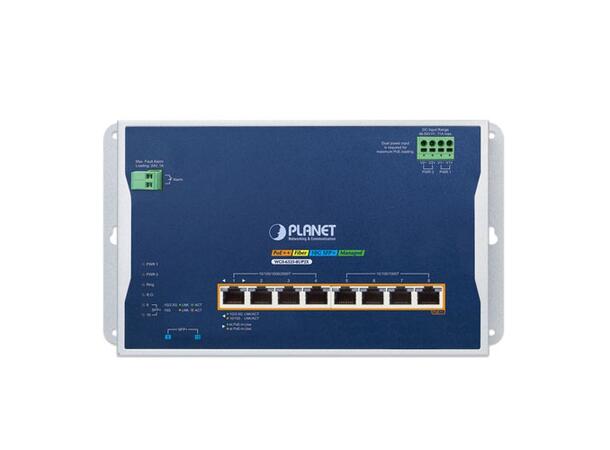

LED Indicator System:
PWR 1(Green)
PWR 2 (Green)
Ring (Green)
Ring Owner (Green)
Per 10/100/1000/2500T RJ45 PoE++ Ports:
1000/2500 LNK/ACT (Green)
10/100 LNK/ACT (Amber)
802.3bt PoE-in-Use (Green)
802.3af/at PoE-in-Use (Amber)
Per SFP+ Interface:
1G/2.5G LNK/ACT (Green)
10G LNK/ACT (Amber)
Switching Specifications
Switch Architecture Store-and-Forward
Switch Fabric 68Gbps/non-blocking
Throughput (packet per second) 50.592Mbps@ 64 bytes packet
Address Table 8K entries, automatic source address learning and aging
Shared Data Buffer 4.1Mbits
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 10Kbytes
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
Power Over Ethernet
PoE Standard IEEE 802.3bt PoE++ Type-4 PSE
Backward compatible with 802.3at PoE+ PSE
PoE Power Supply Type 802.3bt
End-span
Mid-span
Force
PoE Power Output Per port 54V DC
802.3bt Type-4 mode: maximum 95 watts
End-span mode: maximum 36 watts
Mid-span mode: maximum 36 watts
Force mode: maximum 95 watts
Power Pin Assignment 802.3bt: 1/2(-), 3/6(+),4/5(+), 7/8(-)
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
PoE Power Budget Single power input: 240W maximum (depending on power input)
Dual power input: 480W maximum (depending on power input)
?Dual power input must be the same as DC voltage, like dual 54V
Max. Number of Class 3 PDs 8
Max. Number of Class 4 PDs 8
Max. Number of Class 8 PDs 5
PoE Management Functions
Active PoE Device Detection Yes
PoE Power Recycling Yes, daily or predefined schedule
PoE Schedule 4 schedule profiles
PoE Extend Mode Yes, max. 160 meters
PoE System Management System PoE Admin control
Total PoE power budget control
Auto power input and PoE budget control
PoE Legacy mode
Over-temperature threshold alarm
PoE usage threshold alarm
PoE Port Management Port Enable/Disable/Schedule
PoE mode control
802.3bt
802.3at End-span
802.3at Mid-span
Force mode
Port Priority
Layer 3 Functions
IP Interfaces Max. 32 VLAN interfaces
Routing Table Max. 32 static routing entries
Max. 1K dynamic routing entries
Routing Protocols IPv4 RIPv2
IPv4 OSPFv2 dynamic routing
IPv6 OSPFv3 dynamic routing
IPv4 hardware static routing
IPv6 hardware static routing
Layer 2 Function
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000/2500/10000Mbps full and half duplex mode selection
Flow control disable/enable
Port link capability control
Port Status Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status
Port Mirroring TX/RX/both
Many-to-1 monitor
RMirror – Remote Switched Port Analyzer (Cisco RSPAN)
Supports up to 5 sessions
VLAN IEEE 802.1Q tag-based VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4K VLAN groups, out of 4096 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/static trunk
Supports
Static Port Trucking, (10 ports/5 groups max.)
Dynamic LACP-(10 ports/5 groups max.)
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
BPDU Guard
IGMP Snooping Ipv4 IGMP (v1/v2 /v3) Snooping
Ipv4 IGMP Querier mode support
IPv4 IGMP Snooping port filtering
Up to 255 multicast Groups
Multicast VLAN Registration
MLD Snooping Ipv6 MLD (v1/v2) Snooping
Ipv6 MLD Querier mode support
Up to 255 multicast Groups
Bandwidth Control Per port bandwidth control
Ingress: 500Kb~1000Mbps
Egress: 500Kb~1000Mbps
RING Support ERPS, complies with ITU-T G.8032v1 and v2
Recovery time < 10ms @ 3 nodes
Recovery time < 50ms @ 16 nodes
Supports Major ring and sub-ring
Synchronization IEEE 1588v2 PTP(Precision Time Protocol)
Peer-to-peer transparent clock
End-to-end transparent clock
QoS Traffic classification based, strict priority and WRR
8-level priority for switching
Port number
802.1p priority
802.1Q VLAN tag
DSCP/TOS field in IP packet
Security Functions
Access Control List IP-based ACL/MAC-based ACL
ACL based on:
MAC Address
IP Address
Ethertype
Protocol Type
VLAN ID
DSCP
802.1p Priority
Up to 512 entries
Security Port security
IP source guard, up to 512 entries
Dynamic ARP inspection, up to 1K entries
Command line authority control based on user level
Static MAC address, up to 64 entries
AAA RADIUS client
TACACS+ client
Network Access Control IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication
Management Functions
Basic Management Interfaces Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces SSHv2, TLS v1.2, SNMPv3
System Management Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET CloudViewerPro app
Event Management Remote Syslog
System log
SMTP
ONVIF ONVIF device discovery
ONVIF device monitoring
Floor Map
SNMP MIBs RFC 1213 MIB-II
IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Power over Ethernet MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3bz 2.5GBASE-T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management (CFM)
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 1588 PTPv2
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU-T G.8032 Ethernet Ring Protection Switching
ITU-T Y.1731 Performance Monitoring
Environment
Operating Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
