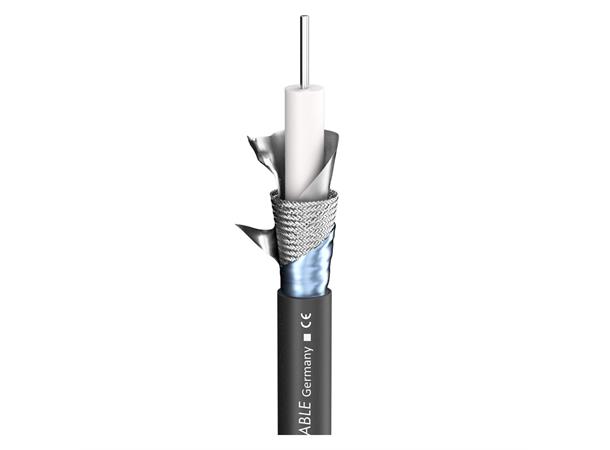

Sommer Vector Videokabel 12G SDI 1x 1,30
Metervare
92,00
Sommer Videokabel SDI
Metervare
Specifications:
Article number
600-0131
Name
SC-Vector Plus
EAN
4049371409742
Properties
3G-SDI
Properties
Digital 75 O
Properties
6G-SDI
Properties
SDI
Properties
Analog
Properties
OFC oxygen free copper
Application area
Studio / Broadcast
Application area
Installation
Application area
ELA 100 V
Application area
Mobile outdoor / indoor
Application
video cable
Colour
black
Colour detailed
black
Jacket material
PVC
Jacket Ø mm
8,10
Number of Channels (video)
1
Inner conductor (video)
1
Inner conductor Ø (video) mm
1,30
AWG (video)
16
Shielding
AL foil + Cu mesh, tinned + 2nd AL foil
Shielding factor %
100
Conductor insulation material
Foam / Skin-PE
Conductor insulation Ø mm
5,70
Weight per 1 m g
90
Style variant
round
Packing
bulk stock
Velocity factor
0,84
Temperature min. °C
-10
Temperature max. °C
80
Width mm
8,1
Height mm
8,1
Capacity wire/electic screen at 1m (video) pF
53
Capacity wire/electic screen at 1 ft. (video) pF
16,1544

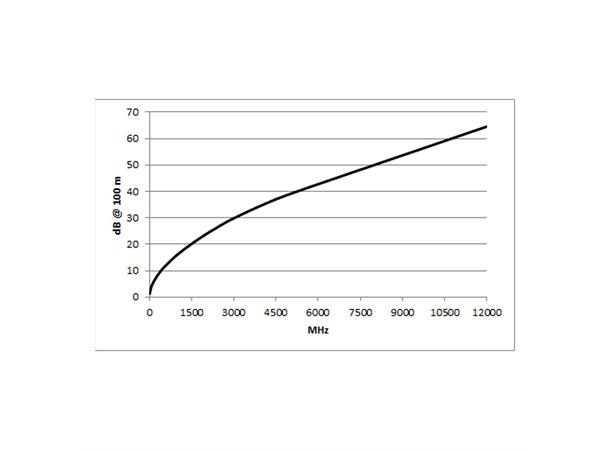

Damping at 5 MHz (100m & 20° C) dB
1,2
Damping at 5 MHz (100 ft. & 20 °C / 68 °F) dB
0,3658
Damping at 50 MHz (100m & 20° C) dB
3,5
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB
1,0668
Damping at 100 MHz (100m & 20° C) dB
4,8
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB
1,463
Damping at 1000 MHz (100m & 20° C) dB
16,1
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB
4,9073
Damping at 1485 MHz (100m & 20° C) dB
20,1
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB
6,1265
Damping at 2150 MHz (100m & 20° C) dB
25,3
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB
7,7114
Damping at 3000 MHz (100m & 20° C) dB
29,8
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB
9,083
Damping at 6000 MHz (100m & 20° C) dB
42,7
Damping at 12000 MHz (100m & 20° C) dB
64,5
Impedance O
75
Conductor resistance per 1 km O
13
Conductor resistance per 1000 ft. O
3,9624
Shield. resistance per 1 km O
6,2
Shield. resistance per 1000 ft. O
1,8898
BPVo-Euroclass
Eca
Tilbehør

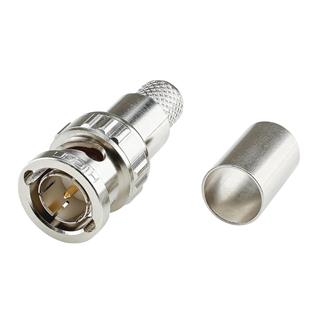

HICON BNC1.3/5.7-6G HD-SDI

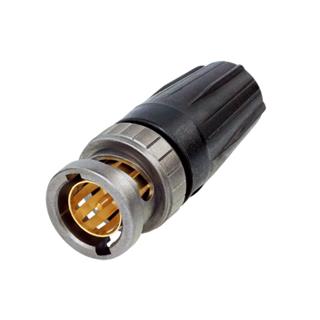

Neutrik UHD BNC Skruplugg 75 Ohm
