NB! Dette er kun chassis. Se under tibehør for I/O-kort. Maks 3 kort.
Modular
4K Multi-Window 1/2RU Video Processor
Use the
1/2 RU CORIOmaster micro to create elaborate and eye-catching video walls in an
even smaller chassis.
C3-503
CORIOmaster micro offers a new, more
efficient approach to building Videowall systems. Using tvONE’s latest CORIO®3
technology, it gives the user access to new levels of video processing power to
achieve new heights of creative and dynamic videowall displays. All this is
possible in one 1RU, half rack sized chassis.
Multiple
windows can be used on a video wall to display the physical inputs into
CORIOmaster. Windows can be sized to fit the wall or multiple windows added,
resized and rotated 360 degrees on the video wall independent of the output
rotation. Each Micro can support up to 2 separate videowalls and projector
edge-blends with up to 14 windows depending on the source resolution, frame
rate and size of windows.
New 4K
Input & Output Modules
The addition of 4K support consists of two new modules; HDMI 2.0 4K60 input
module and the HDMI 1.4 4K30 scaling output module.
New
Streaming Media & 4K Playback Module
The Streaming Media & 4K Playback Input Module provides CORIOmaster systems
with the ability to bring 2 network streams up to 1080p 60 @ 20mbs in to just 1
slot. As well as playback of 4k UHD or 2x 1080p60 video files. The Streaming
Media Input Module also supports still images with full 4K rendering. And with
at least 40mbs of total bandwidth you can easily provide high quality content
to your video wall and projector edge-blend.
New
Transition Effects
CORIOgrapher v2, the control software for the CORIOmaster, CORIOmaster mini and
CORIOmaster micro videowall processors now has included simple easy to use
window and source transition effects. This new animation feature is controlled
by presets in the system. Transition effects occur not only by selecting
presets in CORIOgrapher but also by third party control systems.
Building
of presets in the system now save one or any combination of the following
window transition effects as part of a single preset:
• Preset
Duration – 0 to 60.0 seconds
• Fade through Black – Source change occurs in black
• Horizontal Shrink and Expand – Image shrinks horizontally with source
change in the middle and then expands back to previous window size
• Vertical Shrink and Expand – image shrinks vertically with source
change in the middle and then expands back to previous window size
• Spin – Both left and right rotation up to 7 times in either direction
with source change in the middle of the duration.
• Size – Windows can be sized accordingly and saved in the preset
• Rotation – Windows can be rotated independent of Source Spin in
359º/+359º.
• Movement – place a window in the desired location on the
videowall.
When a
preset is recalled the transition parameters will automatically occur and be
smoothly applied over the duration set in each preset from the current state of
the windows. Presets can be created and selected sequentially for precise
control of desired effects. Presets can also be selected randomly with the
CORIO firmware automatically calculating the difference from preset to preset

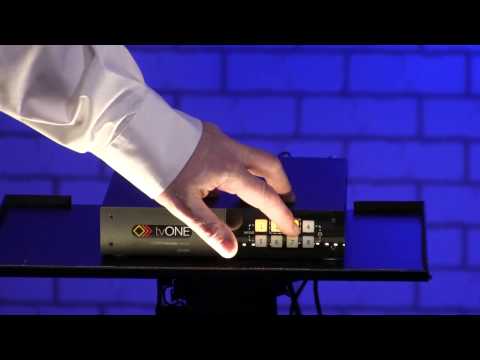

Corio Master Masterclass:
https://www.youtube.com/watch?v=jmsxi64WBm4&list=PLK_fKQtNsCfWKOBKNqFNQ9uGU0isBLaeI
https://www.youtube.com/watch?v=0t61GVQj6Do
https://www.youtube.com/watch?v=WO7bAk8vCL0
