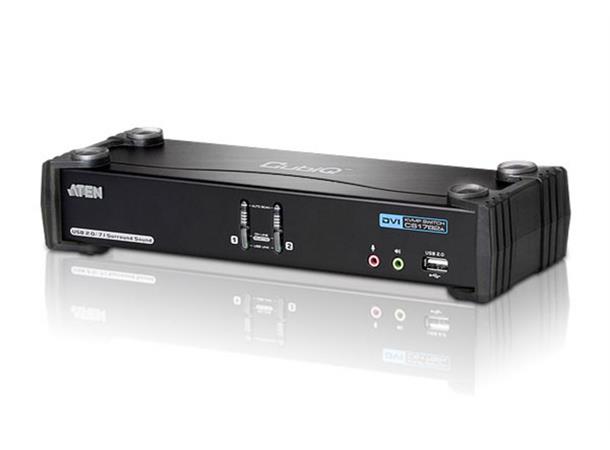

2-Port USB 2.0 DVI KVMP™ Switch
The CS1782 DVI KVMP Switch charts a revolutionary new direction in KVM switch functionality by combining a 2-port KVM switch with a 2-port USB 2.0 hub at the same time as providing an interface for a DVI monitor and 7.1 channel surround sound support.
NB! DVI Kablene som følger med er DVI-D
Features
-
2-port DVI KVM Switch with USB 2.0 support and 7.1 channel surround sound audio
-
One USB console controls two computers and two additional USB devices
-
2-port USB 2.0 hub built in
-
USB 2.0 compliant
-
Full bass response provides a rich experience for 7.1 channel surround sound systems
-
Console audio ports on front panel for easy access - ideal for IP phone users
-
Independent switching of KVM, USB, and audio focus
-
DVI digital and analog monitor support - fully compliant with the DVI specifications; also HDCP compliant
-
Superior video quality – supports up to 3840 x 2400 (DVI Single Link)*; 2048 x 1536; DDC2B (DVI-A)
-
Supports widescreen resolutions
-
Computer selection via front panel pushbuttons and hotkeys
-
Multiplatform support: Windows 2000/XP/Vista, Linux, Mac and Sun
-
Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
-
Display Emulation Technology - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
-
HDCP compliant
-
Complete keyboard emulation for error-free booting
-
Sun/Mac keyboard support and emulation**
-
Auto Scan Mode for monitoring all computers
-
Firmware upgradeable
-
*1.PC keyboard combinations emulate Sun/Mac keyboards
2.Sun/Mac keyboards only work with their own computers
**1.2560 x 1600 @60Hz (DVI Dual Link)
2.3840 x 2400 @13Hz (DVI Single Link)Only supports specific monitor resolution
Package Content
-
1x USB 2.0 DVI KVMP Switch
-
2x Custom KVM Cable Sets
-
2x Custom Audio Cable Sets
-
1x USB-to-PS/2 Converter
-
1x Firmware Upgrade Cable
-
1x Power Adapter
-
1x User Manual
-
1x Quick Start Guide
