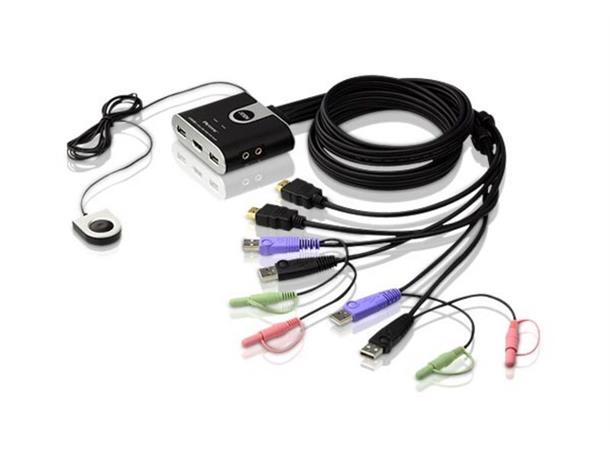

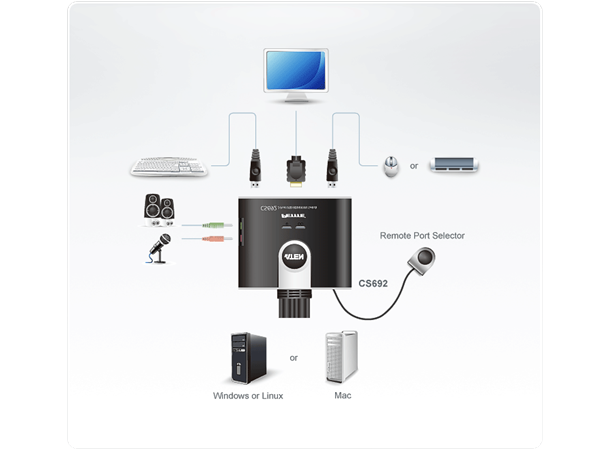

The CS692 HDMI USB KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HDMI display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.

One HDMI video console controls two HDMI-enabled PCs or devices
HDMI 1.3a compatible; HDCP compatible
Computer selection via remote port selector, hotkeys, and USB mouse
Audio-enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus*
Multiplatform support - Windows, Mac, Linux
Compact design, built-in all-in-one cables (2 x 1.2 m)
Superior video quality - up to 1920 x 1200; 1080p
Compatible with widescreen LCD monitors
Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
Power on detection - if one computers is powered off, the CS692 will automatically switch to the other computer
Supports gaming and multimedia keyboards
Supports multifunction and wireless keyboards and mice
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Mac keyboard support and emulation**
USB 2.0 mouse port can be used for USB hub and USB peripheral sharing***
Non-Powered
Firmware upgradable



Note: * HDMI audio through the HDMI monitor's built-in speakers cannot be switched independently.
** PC keyboard combinations emulate Mac keyboards. Mac keyboards work only with their own computers.
*** May require an additional power adapter. To use the USB 2.0 mouse port as a USB hub, you must first disable mouse emulation mode.

2-Port USB HDMI KVM Switch
 The CS692 HDMI USB KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HDMI display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.
 2-Port USB HDMI KVM Switch
 The CS692 HDMI USB KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HDMI display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.



Computer Connections 2
Console Connections 1
Port Selection Remote Port Selector, Mouse, Hotkeys
Connectors Console Ports Keyboard 1 x USB Type A Female (Silver)
Video 1 x HDMI Type A Female (Black)
Mouse 1 x USB Type A Female (Silver)
Speakers 1 x Mini Stereo Jack Female (Green)
Mic. 1 x Mini Stereo Jack Female (Pink)
KVM Ports Keyboard 2 x USB Type A Male (Purple)
Video 2 x HDMI Type A Male (Black)
Mouse 2 x USB Type A Male (Black)
Speakers 2 x Mini Stereo Plug Male (Green)
Mic. 2 x Mini Stereo Plug Male (Pink)
LEDs KVM 2 (Green)
Cable Length KVM 2 x 1.2 m
Remote Port Selector 1.8 m
Emulation Keyboard/Mouse USB
Video 1080p; 1920 x 1200
Scan Interval 3, 5, 10, 20 secs. (default 5 secs.)
Power Consumption DC 5V, 2.65W
Environment Operating Temp. 0 - 50°C
Storage Temp. -20 - 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Plastic
Weight 0.41 kg
Dimensions ( L x W x H ) 6.70 x 8.20 x 2.65 cm



* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
