Chief LCM3X1U

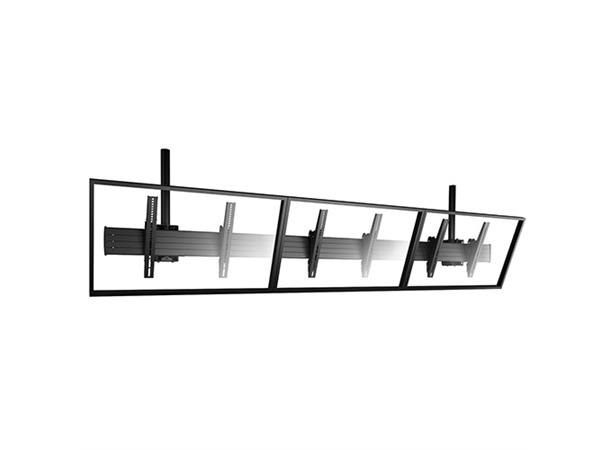

FUSION™ Large Ceiling Mounted 3 x 1 Menu Board



Takfester og søyler er ikke inkludert



Chief's FUSION ceiling mounted solutions make it possible to construct menu boards in prominent locations where walls aren't available. Combine to easily create longer menu boards. Great for digital signage installations.

•Screen array configuration: screens wide x screens high.
•Confirm screen compatibility with MountFinder™



Features

•ControlZone™ Leveling: Micro-height and leveling adjustment at all column intersection points.
•Single horizontal extrusion keeps screens aligned
•Tilting interfaces with Centris technology makes for easy adjustment for +5 / -20 degrees
•Tool-free screen engagement
•Secure displays with optional pad-lock security
•Fits screens 40 - 55" diagonals, add FCAX extension brackets for larger screens up to 65"
•CEILING PLATE and EXTENSION COLUMN are required and must be ordered separately
•Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
•See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
•See CPA ceiling plates and CPA columns for pin conection compatibility
•Recommended ceiling plates for multi-display ceiling mounts (PDF)



Specifications

Adjustments: 2" Micro adjustment at structural intersection points

Certifications: UL Listed

Color: Black

Mounting Pattern Compatibility (Universal Versions): Any width x 100 - 400 mm

Screen Array Configuration: 3 x 1

Shipping Weight: 28 kg

Solution Type: Universal

Typical Screen Sizes: 40 - 55" (up to 65" with FCAX extension brackets)

Weight Capacity: 125 lbs. (56.7 kg) per display
