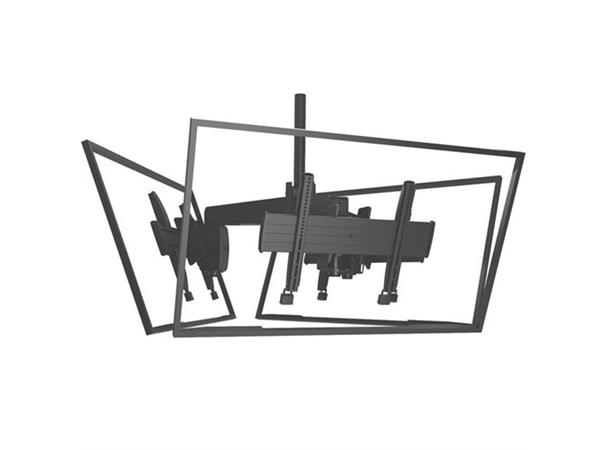

Chief LCM3U
LCM Large Ceiling Multi-Directional Solutions
Chief's Fusion Ceiling Multi-Directional solutions create 360 viewing capability with a triple-mount system. The LCM3U safely supports multiple displays from a single column drop while maintaining the installer-friendly features of the single screen Fusion mounts.
•Ceiling Plate and Extension Column are required and must be ordered separately
•Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column system
•See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
•See CPA ceiling plates and CPA columns for pin connection compatibility
Features
•REPEATABILITY
Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.
•ACCESSIBILITY
Simple on/off connection for ease of installation and service.
•CENTRIS® FINGERTIP TILT
Effortlessly adjust display using Centris fingertip tilt technology.
•SIMPLE & SECURE
Tool free screen engagement with optional padlock security.
•FLEXIBILITY
Mount swivels to any preferred viewing angle.
Specifications
Adjustments: Roll, +/- 3°
Certifications: UL Listed
Color: Black
Mounting Pattern Compatibility (Universal Versions): 200 x 200 - 600 x 400 mm
Overall Dimensions (H x W x D): 18.2 x 46.6 x 46.6" (46.2 x 118.4 x 118.4 cm)
Shipping Weight: 50 kg
Tilt: + 5° , - 20°
Typical Screen Sizes: 32-60"
Weight Capacity: 125 lbs (56.7 kg) per screen
