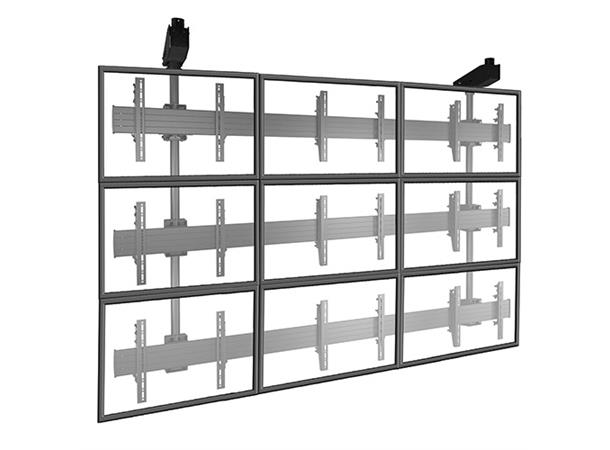

Chief LCM3X3U
FUSION™ Micro-Adjustable Large Ceiling Mounted 3x3 Video Wall Solutions



Chief's FUSION ceiling mounted solutions make it possible to construct video walls in prominent locations where walls aren't available. Great for digital signage installations.


•Screen array configuration: screens wide x screens high.
•Confirm screen compatibility with MountFinder™.



Features
•PRECISE SCREEN ALIGNMENT
  Easily align displays with independent knobs for height and plumb adjustments, no tools required.
•CONTROLZONE™ LEVELING
  Micro-height and leveling adjustment at all column intersection points.
•INFINITE SCREEN POSITIONING
  Infinite vertical and lateral adjustments provide tight display rows and columns.
•HEAVY-DUTY CONSTRUCTION
  Solid construction supports displays up to 55" and 85 lbs (38.5 kg) per screen.
•CONFIGURABLE
  Add configurations side by side to create any video wall arrangements up to 3 screens tall.
•CEILING PLATE and EXTENSION COLUMN are required and must be ordered separately
  Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems.
  See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility.
  See CPA ceiling plates and CPA columns for pin conection compatibility.



Specifications

Adjustments: Micro-Adjustments of 2" at structural intersection points

Certifications: UL Listed

Color: Black

Manual Height Adjustment: 1" (25.4 mm) increments at structural intersections

Mounting Pattern Compatibility (Universal Versions): any width x 100 mm - 400 mm

Notes: Max Screen Height is 27" (686 mm)

Orientation: Landscape

Plumb Adjustment: Micro-adjustment up to 0.75" (19 mm)

Screen Array Configuration: 3 x 3

Shipping Weight: 107 kg

Typical Screen Sizes: 42" 46" (107 - 117 cm)

Weight Capacity: 85 lbs (38.5 kg) per screen
