Global Cachè

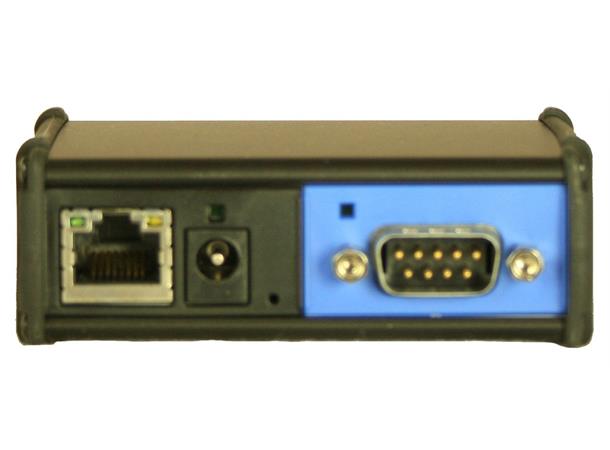

iTach TCP/IP to Serial (RS232) With Power Over Ethernet
Seamlessly connect, monitor, and control serial devices over a network and the Internet. The iTach TCP/IP (Ethernet) devices provide a new level of automation and control flexibility, enabling device networking in homes, businesses, or schools. The product is based on open systems and standards for easy integration and compatibility with PC based control software, iPhone/iPod/iPad control apps, and high-end control systems.
Power Input
5 to 16V DC@300mA (wall power adapter included)
International plugs available
USB power cable draws power from USB port (included)
Power over Ethernet enabled
Setup
Integrated web server for easy configuration
Configure through TCP/IP set up commands
iHelp Setup Utility
Downloadable iHelp software simplifies network discovery and setup
IR Learning Utility
Downloadable iLearn software allows for the capture and playback of IR commands for control uses
Network Connection
RJ45 connector
100/10 Base-T Ethernet protocol
Adheres to TCP, DHCP and HTTP standards
LED Indicators
Power and all connectors to indicate activity
Serial/RS232
Male DB9 Connector
1200 baud to 115 Kbaud data rates supported
Odd, Even, and None parity settings
Bi-directional with hardware RTS/CTS flow control
Device Packaging
Aluminum extrusion case, rubber end caps and plastic face plates
Dimensions (LxWxH): 3.25″ x 2.25″ x 1.25″
Weight: 3.25 oz. (6 oz. with power supply)
Certifications
FCC (Part 15, Class B), C-tick, CE
RoHs compliant
Warranty
Two year limited warranty
Support available via phone, email, and comprehensive support portal
