Global Cachè

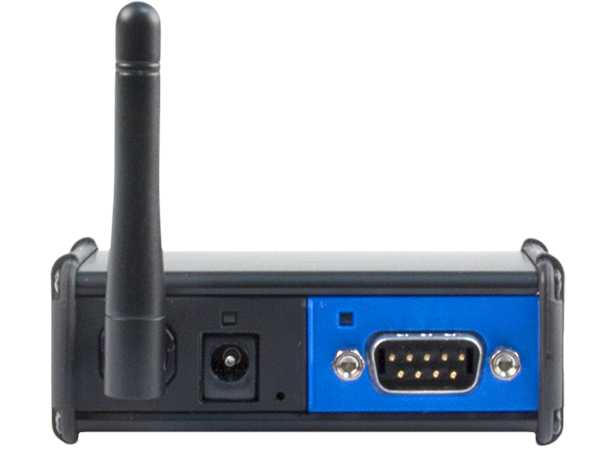

iTach WiFi to Serial (RS232)
Wirelessly connect, monitor, and control serial devices over a network and the Internet. The iTach WiFi devices provide a new level of automation and control flexibility, enabling device networking without wiring. The product is based on open systems and standards for easy integration and compatibility with PC based control software, iPhone/iPod/iPad control apps, and high-end control systems.
Power Input
5 to 16V DC@300mA (wall power adapter included)
International plugs available
USB power cable draws power from USB port (included)
Setup
Integrated web server for easy configuration
Configure through TCP/IP set up commands
iHelp Setup Utility
Downloadable iHelp software simplifies network discovery and setup
Network Connection
Industry standard 802.11b wireless interface, 2.5″ antenna
Supports wireless LAN, adhoc (for setup) and Infrastructure modes
Compatible to 802.11b/g
LED Indicators
Power and all connectors to indicate activity
RS 232 Port
Male DB9 Connector
1200 baud to 115 Kbaud Data Rates Supported
Odd, Even, and None Parity Settings
Bi-directional hardware RTS/CTS Flow Control
Device Packaging
Aluminum extrusion case, rubber end caps and plastic face plates
Dimensions (LxWxH): 3.25″ x 2.25″ x 1.25″
Weight: 3.25 oz. (6 oz. with power supply)
Certifications
FCC (Part 15, Class B), C-tick, CE
RoHs compliant
Shipping Box Dimensions
(LxWxH) 9.0″ x 3.5″ x 2.0″
Weight: 1 lb.
Warranty
Two year limited warranty
Support available via phone, email, and comprehensive support portal
