EFB RJ45 Plugg Cat.6 Field AWG22-27 IP20 Toolfree

EFB RJ45 Plugg Cat.6 Field

AWG22-27 IP20 Toolfree

Varenr: 88035.1
109,00
Logg inn for å se dine nettopriser.Ikke kunde enda? Søk her.
-+
5 på lager ( i Oslo)

Fri frakt på ordre over kr. 3000!

Du er kr. 3 000,00 unna å få fri frakt

BeskrivelseSpesifikasjonerAlternativerLenker og Dokumenter
Beskrivelse

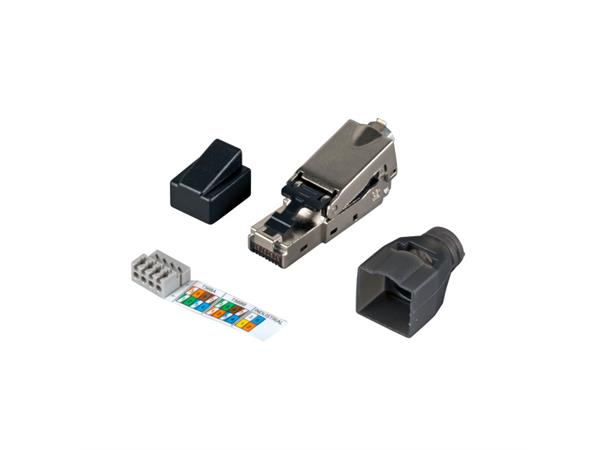

INFRALAN® FTPS600 Cat.6 RJ45
Excellent transmission quality and fast and easy tool-free assembly.

Fully shielded zinc diecast housing ensures the best EMC features especially in industrial environments.
IDC terminals and very low contact resistances assure high quality contacting for installation cables up to 9mm diameter and wire gauge from AWG22 - AWG27.

Shielded zinc diecast body with separate dust cap and strain relief boot
Class E performance according to ISO/IEC11801 and IEC60603-7-5
Compact cable manager for AWG 22/1 .. AWG 26/1 or AWG22/7 .. AWG27/7
Pair management according to TIA 568A /B colour codes and industrial Profinet 1-2-3-6
Re-termination capability up to 10 times, for AWG27/7 up to 5 times.
Suitable for cable dia from 6,0mm .. 9,0mm
Strain relief with cable tie

DATASHEET
INFRALAN® FTPS600 RJ45 Cat.6 /Class E Art. -No.: 88035.1
• Shielded zinc diecast body with separate dust cap and strain relief boot
• Class E performance according to ISO/IEC11801 and IEC60603-7-5
• Compact cable manager for AWG 22/1 .. AWG 26/1 or AWG22/7 .. AWG27/7
• Pair management according to TIA 568A /B colour codes and industrial Profinet 1-2-3-6
• Re-termination capability up to 10 times, for AWG27/7 up to 5 times.
• Suitable for cable dia from 6,0mm .. 9,0mm
• Strain relief with cable tie

Specifications
Electrical properties:
• Insulation resistance: > 500 MΩ
• Dielectric Withstand voltage: 1000V DC
• Contact resistance: <20 mΩ
• Current rating: 1.5A @ 20 ° C

Technical data
Mechanical properties:
• Mating cycles > 750 cycles
• Temperature range: -40 ° C ~ +66 ° C
• Contact plating: 50μ“ gold
• Protection class: IP20
