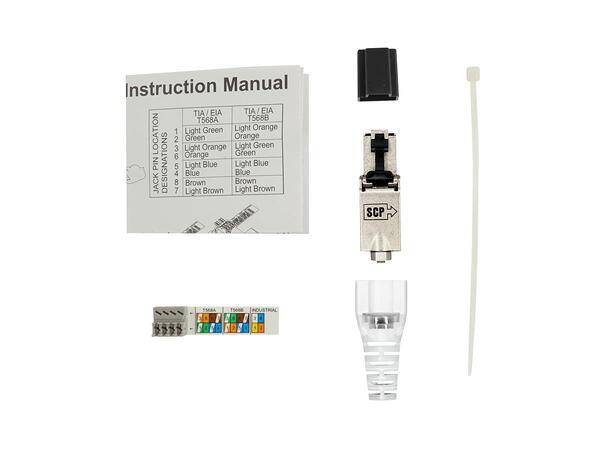

Pro-Grade 10G RJ45 Field Plug
Full Shield, Tool-less, Straight Feed, AWG 26-22, Class Ea Rated - 1Ea/Bag
Product Information
SCP is offering our new ProGrade 10G RJ45 Field Plug for transmission speed connections up to 10 Gbit/s. Our SCP Part # 10G-FP can be easily terminated in the field in 1 minute without any special tools.
The SCP 10G RJ45 Field Plug is the high performance connectivity solution for all 10G RJ45 terminations. The SCP 10G RJ45 Field Plug eliminates difficult and improper terminations from other inferior RJ45 plugs on the market today. The # 10G-FP connector improves lower transmission performance and eliminates data loss caused by cheap connectors and improper cable terminations.
The SCP 10G Field Plug can be used with LAN network cable such as: CAT6 F/UTP, HNCPROPLUS-SH, CAT6A U/FTP, HNCPROPLUS-6A, Cat7/7a, and HNCPROPLUS-7A cables. Each SCP # 10G-FP connector has a zinc die-cast housing providing 360° shielding that protects the 10G signal from any interference. The SCP # 10G-FP is the only recommended and approved RJ45 connector for 10G cables and systems.
In addition, our 10G-FP connector is backwards compatible for CAT6 Shielded cable terminations. Ramp up the power and performance of your CAT6 cable terminations with the SCP 10G RJ45 Field Plug.
MADE IN GERMANY
Features:
- CAT6A Class Ea RJ45 plug to be assembled in the field
- Fully Shielded and multi-port capable Straight (180 degree) cable feed
- Easy Assembly - connection without special tools
- Wire Connection: Stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm
- Wire Connection: Solid wire AWG 26/1 to 22/1, wire diameter from 0.4 to 0.76 mm
- Transmission Characteristics: CAT6A per ISO/IEC 11801 Ed.2.2:2011-06
- Compliance with class Ea to ISO/EIC 11801 Ed.2.2.2011-06, DIN EN 50173-1:2011-09 10 GBit Suitable according to IEEE 802.3an
- Suitable for Power over Ethernet(PoE, PoE plus, and UPoE)
- Degree Protection IP20
- Cable Jacket Diameter from 5.5 to 10.5 mm
- Zinc die-cast housing for industrial use consists of only 2 partsStrain relief by latching clip directly on the stuffer cap
- Protected Locking Hook
- Reconnectable
