Planet Switch BSP-360
Industrial Renewable Power 5-Port Gigabit Managed Switch with 4-Port 802.3at PoE+
Industry-leading Integration of PoE Technology and Renewable Power System
PLANET’s newly-launched Renewable Energy Industrial 802.3at PoE Managed Ethernet Switch, BSP-360, is designed for deploying a surveillance or wireless network and remotely monitoring and managing the IP-based devices. Based on its green technology, the BSP-360 can be charged by the inexhaustible and natural source of energy, such as solar, wind and hydroelectric power to conserve energy so as to economically power these remote IP cameras and wireless APs, especially used for such expansive applications as dams, forests, deserts, national parks, nature/animal protection areas and highways.
MPPT (Maximum Power Point Tracking) Charge Controller
An MPPT (Maximum Power Point Tracker) is an electronic DC to DC converter that optimizes the match between the PV solar panels and the battery bank or utility grid. They convert a higher voltage DC output from solar panels (and a few wind generators) to the lower voltage needed to charge the battery effectively
Zero-Carbon and Stable Power Supply

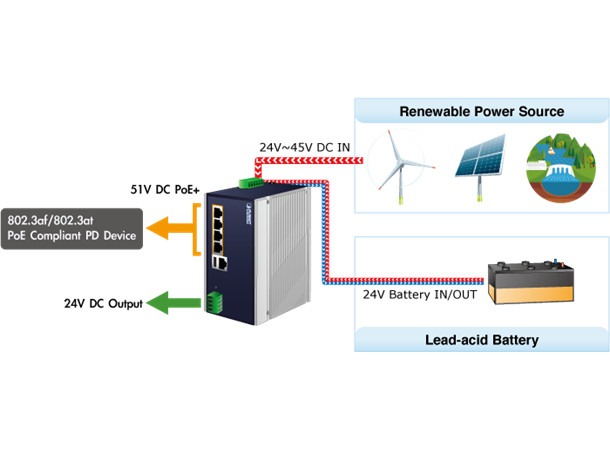

The nickel-cadmium or lead-acid battery gets recharged by way of the BSP-360 where solar power is sourced. Thus, the BSP-360 will keep powering PD devices without the need of any cabling. Its zero-carbon feature is made possible as the energy the unit gets is renewable. Most importantly, the operation of outdoor wireless IP-based surveillance can be continued into the night as the battery is charged during the day.
Smart Battery Management
The BSP-360 features the following special power management functions:
Current battery usage status by percentage
Low voltage cut-off protection
Current Battery Usage Status
The administrator can remotely access the BSP-360 to know the power status of the battery and renewable energy, and the estimated time of power consumption
Low Voltage Cut-Off Protection
If the remaining energy is too low to power the network, the system will automatically power off the device to make sure the system works normally, and an alert is then sent to the administrator at the same time.
Spesifikasjoner:

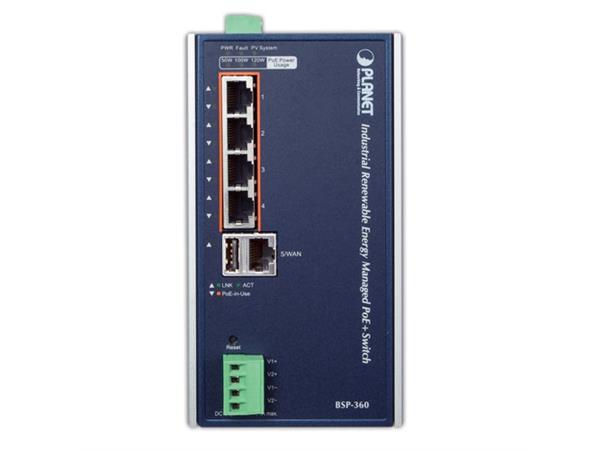

Physical Port
5-port 10/100/1000BASE-T Gigabit RJ45 copper with 4-port IEEE 802.3at/af PoE injector function (Port 1 to Port 4)
RJ45 type interface for basic management and setup
USB type A female for setting file backup and restoration
Power over Ethernet
Complies with IEEE 802.3at Power over Ethernet Plus end-span PSE
Backward compatible with IEEE 802.3af Power over Ethernet
Up to 4 ports of IEEE 802.3af/802.3at devices powered
Supports PoE power up to 30 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100 meters
PoE management
Total PoE power budget control
Per port PoE function enable/disable
PoE port power feeding priority
Per PoE port power limitation
PD alive check
PoE schedule
Battery Management
Battery type option: lead-acid battery
Easy diagnostic of the system operating status via LED indicator
Current battery usage status
Low voltage cut-off protection: Send alert and cut off power when the battery is low
MPPT (Maximum Power Point Tracking) Charge Controller
Reverse current protection to prevent the current circuits from flowing back to the PV panel
Over-current and over-temperature protection
Reverse polarity protection (for battery and charging electrodes)

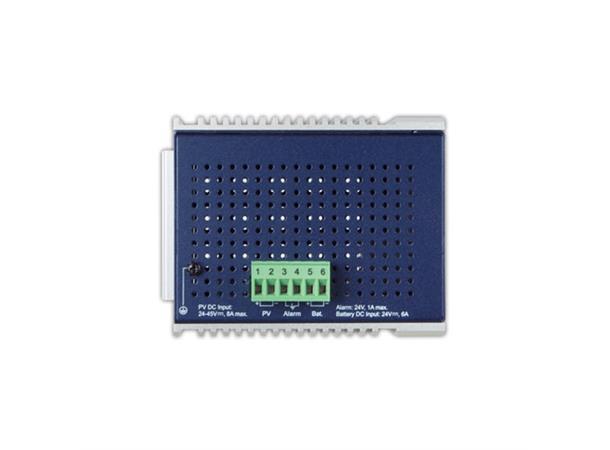

Industrial Case and Installation
IP30 aluminum case
DIN-rail and wall-mounted designs
Supports -10 to 60 degrees C operating temperature
Supports ESD 6KV DC Ethernet protection
Redundant power supply
24V~45V DC wide power input
Switching
Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
8K MAC address table size
Automatic address learning and address aging
Router
Internet types: Dynamic IP, static IP, PPPoE, L2TP, PPTP
Static and dynamic (RIP1 and 2) routing
IP/MAC-based bandwidth control
Supports Port Forwarding, DMZ, UPnP and Dynamic DNS for various networking applications
802.1d STP and IGMP Proxy
Security
Port filtering allows which application can access the Internet.
MAC filtering allows you to include or exclude computers and devices based on their MAC address
URL filtering allows you to control access to Internet websites in an URL list
IP source guard prevents IP spoofing attacks
DoS attack prevention
Management
Switch Management Interface
IPv4 Web switch management
SNMP v1, v2c
Static and DHCP for IP address assignment
System Maintenance
Firmware upload/download via HTTP
Configuration upload/download through HTTP
Hardware-based reset button for system reboot or reset to factory default
Network Time Protocol
SNMP trap for Link Up and Link Down notification
Event message logging to remote syslog server
PLANET Smart Discovery Utility
