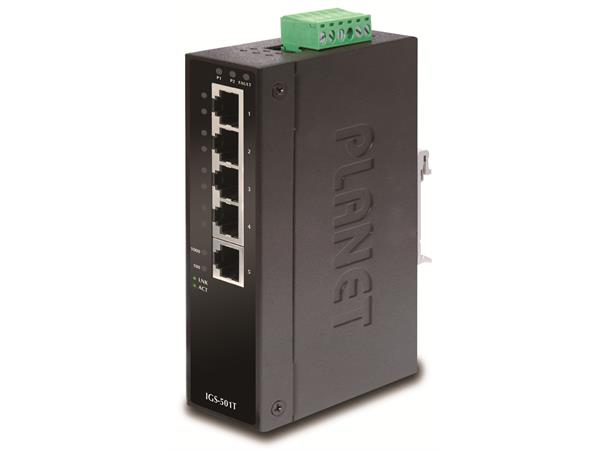

Planet IGS-501T

 5-Port 10/100/1000Mbps Industrial Gigabit Ethernet Switch w/ Wide Operating Temperature


Leveres uten strømforsyning, se tilbehør
Strømkrav: 9~48V DC, redundant power with polarity reverse protection function, 24V AC power support

New slim type with more practicability and convenience
After entering the Industrial Ethernet market with popular ISW / IFT series Fast Ethernet Switch / Converter products, PLANET now releases the advanced industrial hardened Gigabit Ethernet Switch series with new slim type, IP-30 metal case. The compact, IP-30 standard metal case allows either DIN rail or wall mounting for efficient use of cabinet space. The IGS-501T, one of the new series model, equips with 5 10/100/1000Mbps auto negotiation ports and operates reliably in Heavy Industrial demanding environments. Stable performance under difficult environments

 The IGS-501T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degree C coupled with hazardous location certification (Class 1 Division 2), the IGS-501T can be placed in almost any difficult environment. The IGS-501T also possesses an integrated power supply source with wide range of voltages (12 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs. Robust Switch performance
The IGS-501T offers high performance switch architecture. With the 5 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 10Gbps and the 8K MAC Address table, the IGS-501T can perform wire-speed packets transfer without risk of packet loss.
The flow control function enables the IGS-501T to provide fast and reliable data transfer. The Gigabit port with 9K Jumbo frame supported can handle extremely large amounts of data transmission in industrial topology that forward data to central control room.
All of the RJ-45 copper interfaces in the IGS-501T support 10/100/1000Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. The standard Auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.


 Key Features
  • Physical Port
–5-Port 10/100/1000Base-T RJ-45 with auto MDI/MDI-X function   • Layer 2 Features
–Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
Ethernet standard
–Supports Auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full
duplex mode
–High performance Store and Forward architecture, broadcast storm control, runt/CRC
filtering eliminates erroneous packets to optimize the network bandwidth
–Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame
flow control (Full-Duplex)
–Backplane (Switching Fabric): 10Gbps
–Integrated address look-up engine, support 8K absolute MAC addresses
–136 kilobytes on-chip frame buffer
–9K Jumbo packet size support
–Automatic address learning and address aging
–CSMA/CD Protocol   • Industrial Case / Installation
–IP-30 Metal case / Protection
–DIN Rail and Wall Mount Design
–12 to 48V DC, redundant power with polarity reverse protect function and
connective removable terminal block for master and slave power
–Supports EFT protection 6000 VDC for power line
–Supports 6000 VDC Ethernet ESD protection
–-40 to 75 Degree C operation temperature
