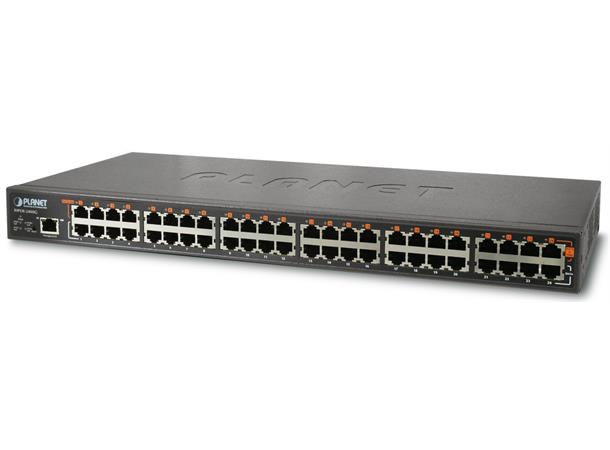

Planet HPOE-2400G
24-Port Gigabit IEEE 802.3at Power over Ethernet Injector Hub
Overview
High Power PoE for Public Service PoE Applications
The PLANET HPOE-2400G, the next generation 24-Port Gigabit IEEE 802.3at High Power PoE Web Management injector Hub, features both IEEE 802.3af and High Power IEEE 802.3at Power over Ethernet (PoE) that combines up to 30 Watts power output and data per port over one CAT 5E/6 Ethernet cable. It is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / Speed Dome network cameras, multi-channel (802.11a/b/g/n) wireless LAN access points and other network devices by providing double amount of PoE power than conventional 802.3af PoE PSE.
IEEE 802.3at PoE Pre-Standard Compliant
Till today, the IEEE 802.3af Power over Ethernet Standard has become popular yet the PoE demand still grows for increasing network-powered applications. With many critical applications increases, the demand of higher power appears. Hence, the IEEE 802.3at Power over Ethernet pre-standard is defined to allow delivery of maximum up to 30 Watts input power to per PoE device. The IEEE 802.3at PoE pre-standard is an ideal solution to fulfill the high power requirements directly via the RJ-45 Port interface. Compliant with IEEE 802.3at, the HPOE-2400G possesses stronger power capability than the existing 802.3af PoE PSE.
PoE Schedule for Energy Saving
Under the trend of energy saving worldwide and contribute to environment protection on the earth, the HPOE-2400G can effectively control the power supply besides its capability of giving high watts power. The PoE schedule function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMB or Enterprise save power and money.
Advanced Power Management
To facilitate power management, the HPOE-2400G is implemented powerful PoE management features such as over temperature protection, usage threshold alert and auto power allocate to prevent power budget overloading. The PoE power budget can be allocated by priorities or classification and sent alert event logs when power usage reaches the defined threshold. The HPOE-2400G enables centralization of the power supply and optimizes the installation and power management of remote network devices; therefore, it eliminates costs for additional AC wiring and reduces installation time.
Quick and Easy PoE Network Deployment
The HPOE-2400G complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af standards and IEEE 802.3at pre-standard. With 24 10/100/1000Base-T Gigabit Ethernet ports, the HPOE-2400G supports 52V DC power for any remote 802.3af / 802.3at powered device (PD). Supports PoE power budget of 460 Watts, the HPOE-2400G provides sufficient 15.4 / 30.8 Watts PoE power up to 24 remote PD devices.
Easy Cabling Installation
The HPOE-2400G is installed between a regular Ethernet Switch and the powered devices; it injects power to the PDs without affecting data transmission performance. It offers a cost effective and quick solution to upgrade network system to IEEE 802.3af / IEEE 802.3at Power over Ethernet system without replacing the existing Ethernet Switch. There are 48 RJ-45 STP ports on the front panel of the HPOE-2400G, of which the 24 ports on the lower stack function as "Data input" and the other 24 ports on the upper stack function as "PoE (Data and Power) output". The 24 "PoE output" ports are also the power injectors that transmit DC Voltage to the CAT 5/5e/6 cable and transfer data and power simultaneously between the Injectors and Splitters.
Friendly Web Management Interface
To efficiently manage the powered devices, the HPOE-2400G provides simple Web management interface in which administrators can control the functions including port Enable / Disable, port priority, system configuration, Username / Password changing and smart features for powered devices. The PoE injector Hub can automatically detect the power status of each port and show massages on its Web management interface. These features also provide users a cost-effective way to manage the device via Internet whenever they are at work or at home.
Key Features
• 48-Port RJ-45
–24 -Port 10/100/1000Mbps Data input
–24 -Port 10/100/1000Mbps Data + Power output
• 1-Port 10/100Base-TX Management Port
• Reset button for system management
• Complies with IEEE 802.3, IEEE 802.3at and IEEE 802.3af Power over Ethernet Mid-Span PSE
• Up to 24 IEEE 802.3at / 802.3af devices powered
• Supports PoE power up to 30.8 Watts (802.3at PoE) / 15.4 Watts (802.3af PoE) for each PoE port
• Automatically detect powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100 meters
PoE Management
• Total PoE power budget control
• Per port PoE power schedule
• PoE function enable / disable
• Per port PoE function enable / disable
• Per port 802.3at / 802.3af mode switch
• PoE port power feeding priority
• Per PoE port power limit
• PD classification detection
• Over Temperature Protection
• PoE Temperature Threshold
• PoE power Usage Threshold
Management
• Web interface for remote management
• Supports Network Time Protocol (NTP)
• Firmware upgrade through Web interface
• PLANET Smart Discovery utility automatically finds PLANET devices on the network
• SNMP Trap for alarm notification of events
• System Log / Remote Syslog
Hardware
• 19-inch rack mountable; 1U height
• Reset button for reset to default setting and system reboot
• LED indicators for PoE ready and PoE activity
• LED indicators for Power Alert and Fan Alert
• FCC Part 15 Class A, CE
Standard Compliance
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3at pre-standard Power over Ethernet
• IEEE 802.3af Power over Ethernet
• RFC 768: UDP
• RFC 791: IP
• RFC 2068 HTTP
• RFC 1157: SNMPv1
• RFC 1902: SNMPv2c
• RFC 5424: Syslog
