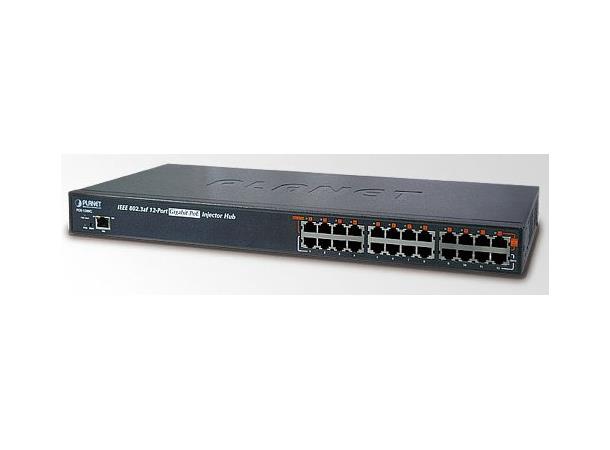

Planet POE-1200G
12-Port Gigabit IEEE 802.3af Power over Ethernet Injector Hub
Quick and Easy Gigabit PoE Network Deployment
The PLANET POE-1200G is 12-Port Gigabit IEEE 802.3af PoE Web Management injector Hub and complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3af standards. With 12 10/100/1000Base-T Gigabit Ethernet ports, the POE-1200G supports full 48V DC power for any remote IEEE 802.3af powered device (PD) such as Wireless LAN Access Point, IP phone, and IP Camera. Supporting full PoE power budget of 190 Watts, the POE-1200G provides sufficient 15.4 Watts PoE power to 12 remote PD devices.
Easy Cabling Installation
The POE-1200G is installed between a regular Ethernet Switch and the powered devices; it injects power to the PDs without affecting the data transmission performance. It offers a cost effective and quick solution to upgrade network system to IEEE 802.3af Power over Ethernet system without replacing the existing Ethernet Switch. There are 24 RJ-45 STP ports on the front panel of PoE Injector Hub, of which 12 ports on the lower stack function as "Data input" and the other 12 ports on the upper stack function as "PoE (Data and Power) output". The 12 "PoE output" ports are also the power injectors which transmit DC Voltage to the CAT 3/4/5/5e/6 cable and transfer data and power simultaneously between the Injectors and Splitters.
Friendly / Simple Web Management Interface
To efficiently manage the powered devices, the POE-1200G provides Web management interface in which administrators can control the functions including port Enable / Disable, port priority, system configuration, and Username / Password changing and smart features for powered devices. The PoE injector Hub can automatically detect the power status of each port and show massages on its Web management interface. These features also provide users a cost-effective way to manage the device via Internet whenever they are at work or at home.
Key Features
Interface
• 24-Port 10/100/1000Base-T Gigabit RJ-45 STP
- 12-Port “Data input”
- 12-Port “PoE (Data + Power) output”
• 1 10/100Base-TX management port with auto MDI / MDI-X feature
PoE
• Complies with IEEE 802.3af Power over Ethernet Mid-Span PSE
• Up to 12 IEEE 802.3af devices powered
• Supports PoE power up to 15.4 Watts for each PoE ports
• Automatically detect powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m
PoE Management
• Total PoE power budget control
• Per port PoE function Enable/Disable
• PoE port power feeding priority
• Per PoE port power limit
• PD classification detection
• PoE Power Schedule
• Over Temperature Protection
Management
• Web interface for remote management
• Supports Network Time Protocol
• Firmware upgrade through Web interface
• PLANET Smart Discovery utility automatically finds PLANET devices on the network
• SNMP Trap for alarm notification of events
Hardware
• 19-inch rack mountable; 1U height
• Reset button for default setting and system reboot
• LED indicators for PoE ready, PoE activity, FAN Alert and Power Alert
Standard Compliance
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3af Power over Ethernet
• FCC Part 15 Class A, CE
