Planet POE-176-95

Single-Port 10/100/1G/2,5G/5G/10Gbps Ultra PoE Injector (60/95 Watts)


• 2 Port RJ-45 interface
  1 Port Data + Power output-

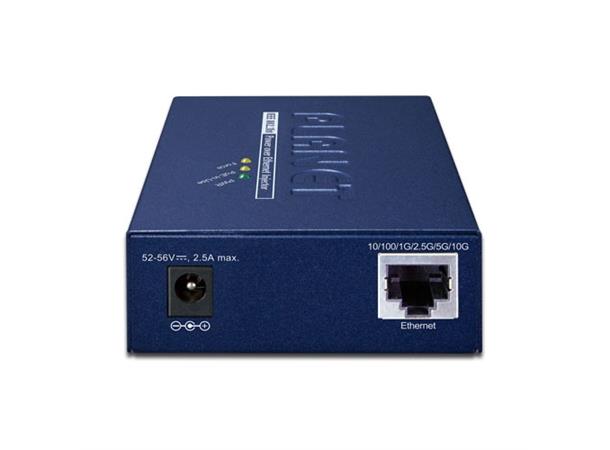

• 1 Port Data input•1 DC 52~56V input power socket

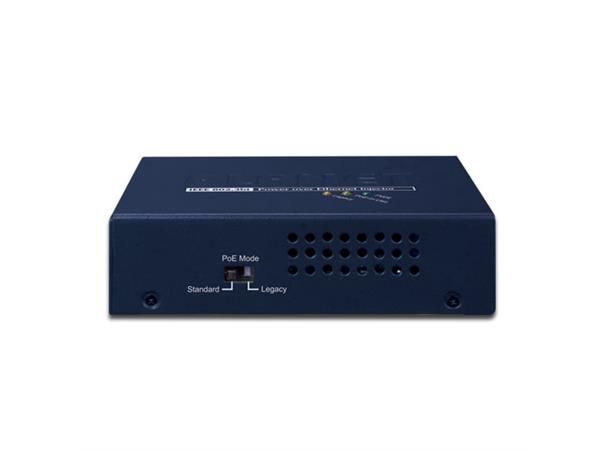

  1 PoE mode (standard/legacy and force) DIP switch

• Ultra Power over Ethernet End-Span/Mid-Span PSE
  IEEE 802.3at/bt PoE standard compliant
  Compatible with All IEEE 802.3af/at/bt powered devices
  Supports 56VDC, 60/95-watt PoE power output at maximum
  Auto-detection of PoE IEEE 802.3af/at/bt equipment and device for possible damage by incorrect installation
  Remote power feeding up to 100 meters


• Compact size metal case

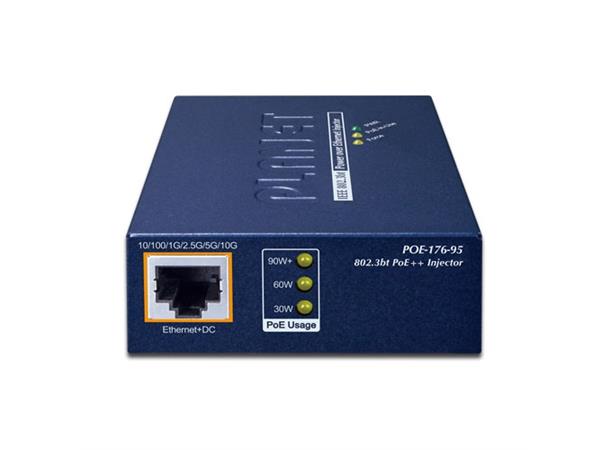

  LED indicators for Power LED, PoE-in-Use LED, Legacy LED and PoE Usage LED
• Wall mount Design
• Supports 6KV DC Ethernet ESD Protection
